The Multi Line Tool can be used to add wall outlines or draw freehand items (e.g., worktops, boxes, plinths, etc.)
To use the Multi Line Tool, follow the steps below:

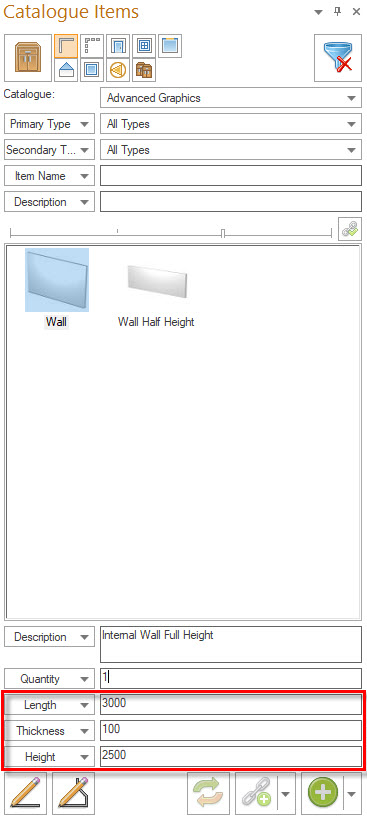

1. Within Plan View, go to the Catalogue Items palette and select the item you wish to add.
(For this example, we have selected a wall from the Walls Selector)
Set length / thickness / height if required.

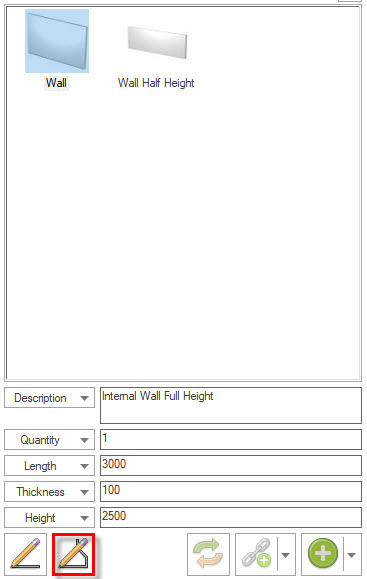

2. Select the Multi Line Tool. (Shortcut Key CTRL + SHIFT + 4).

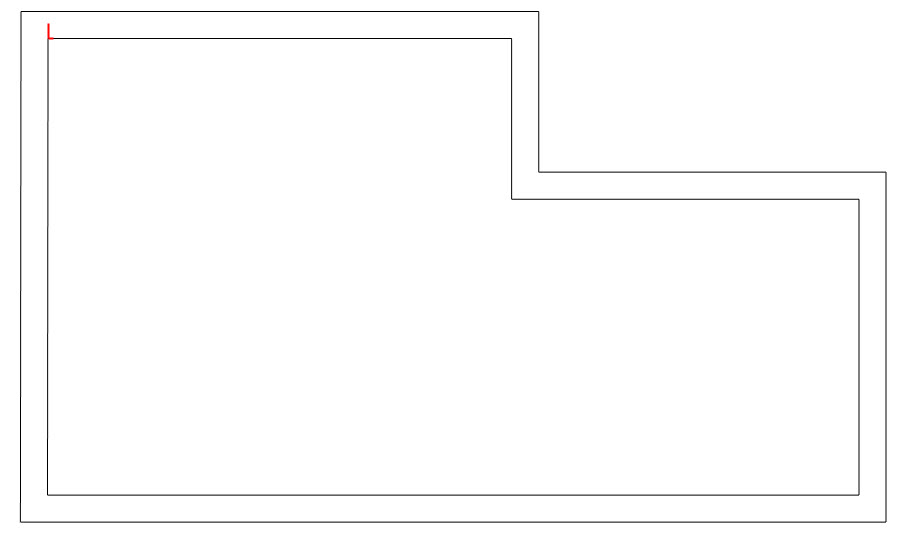

3. Left click on the plan to create a starting point and drag the mouse cursor towards the direction you want to draw the wall (or any freehand item).
Left click again to add another wall.
4. Once you have drawn the walls, double click to finish.
A few examples of items you can add using the Multi Line tool are walls, plinths, worktops, boxes, ceiling wedge, etc.
[Note: If you are adding the walls using the Multi Line Tool, please draw them in a clockwise direction].
