The 'Mirror' feature within 2020 Fusion will mirror all standard design items and their dimensions & annotations and print areas will be reinterpreted and reapplied to the mirrored design.
To mirror a design in 2020 Fusion Connect, follow the steps below:
1. Select the design you wish to mirror.

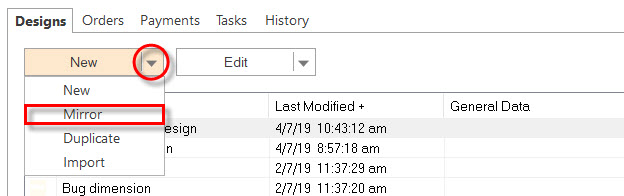

2. Click on the 'New' drop-down menu and select Mirror.

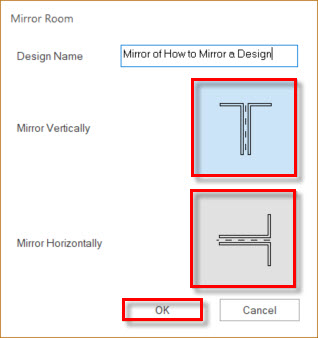

3. You will then see 'Mirror Room' window. Select how you wish to mirror the design and click OK.

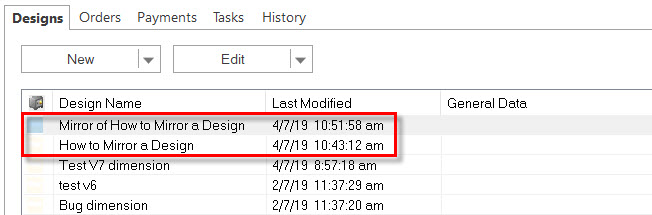

4. The new mirrored design will automatically open and you will see the mirrored design in the designs list.

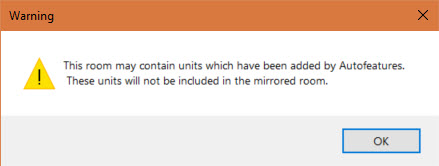

Note: If the design contain units added by Autofeatures, (example; Worktop, Plinths, Cornice, etc), these units will not be transferred, therefore will need to be reapplied to the mirrored design.
To mirror a design in 2020 Fusion Standalone, follow the steps below:
1. Open the design you wish to mirror.

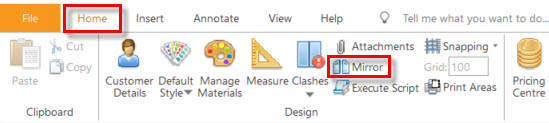

2. Within 2020 Fusion, go to 'Home' and click on Mirror.

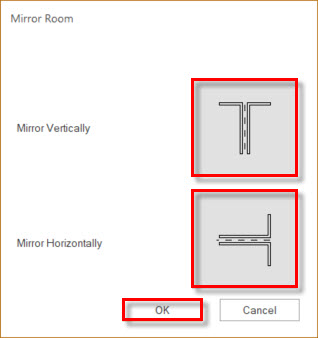

3. You will then see 'Mirror Room' window. Select how you wish to mirror the design and click OK.
4. The new mirrored design will automatically open and the .ROM file will be saved in the same location as the original .ROM file.
