It is possible to set the order of the plan annotations within 2020 Fusion via the 'Item List.' Accessing the 'Item List' can be done in two ways.
Click on the View button in the ribbon and then the Item List.
The 'Item List' can also be accessed by simultaneously holding the CTRL button and pressing the number 2 on the keyboard.
1.Once in the 'Item List,' clicking on the drop-down arrow will provide a variety of selections on how to set the order of the room items or annotated items.
Hovering with the mouse over each available choice will provide a description of the choice.
2. Using the above as an example, the 'User Defined' selection will be beneficial if the user would like to drag and drop their items from the 'Item List' in a specific order. To manually move an item with the mouse in the 'Item List,' simply click on the desired item and drag it by holding the left button of the mouse until it is the placement order required. The example below has the unit BH100 originally in position 2 and then it is dragged to be in position 9.

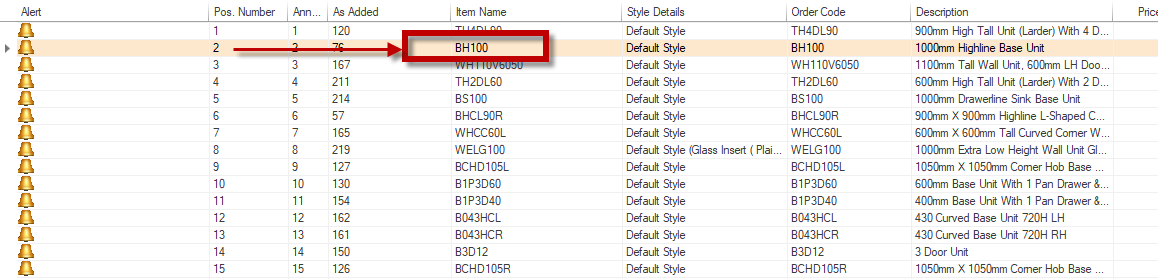

Before

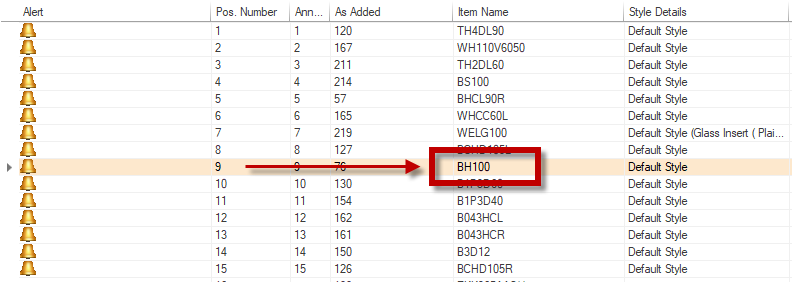

After

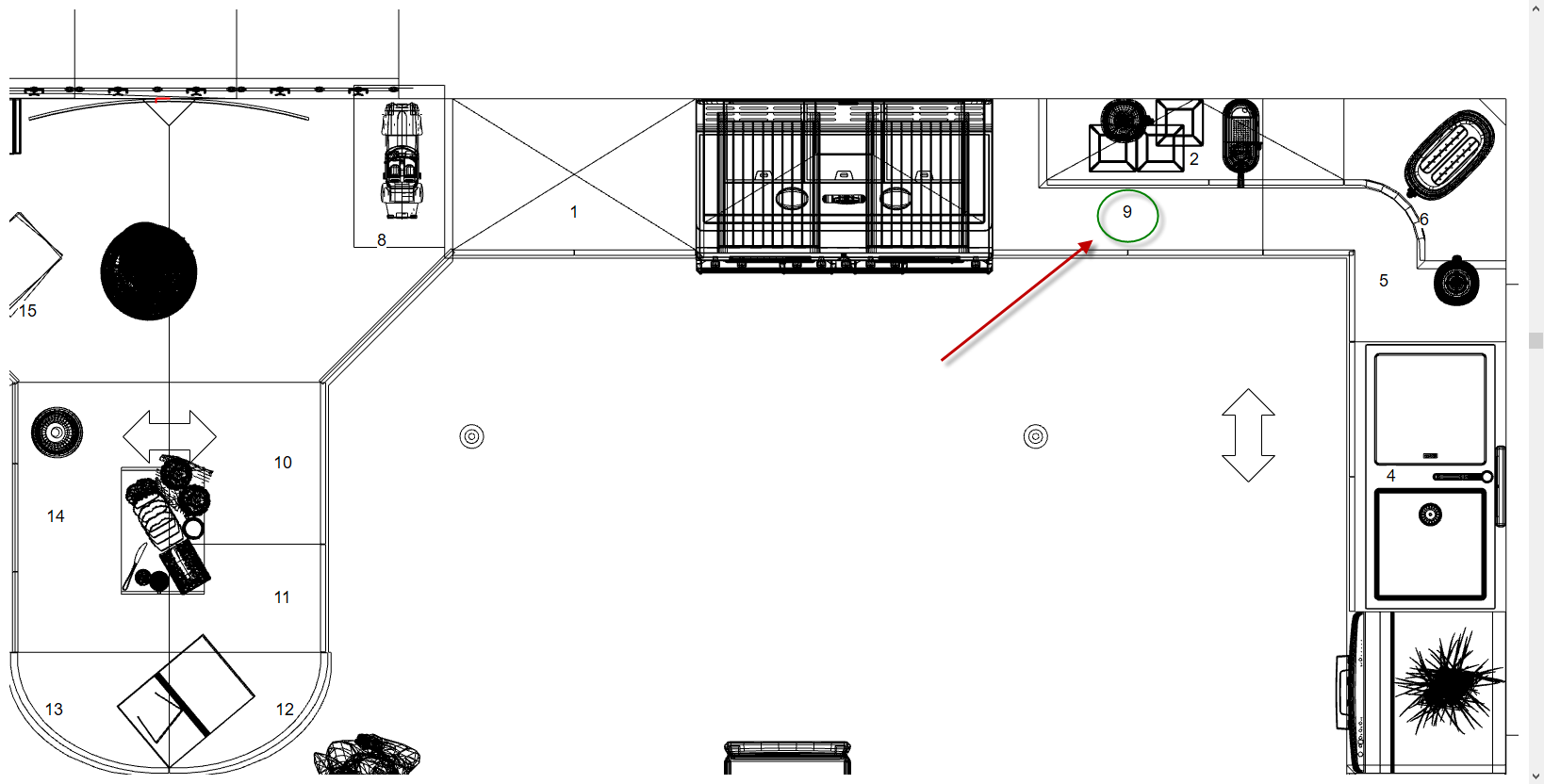

Moving the items in the 'Item List' will reflect in the plan of the design as well.
Before
After
Positioning Annotated Items via the Item List
