Applies to:
2020 Fusion Version 7
Matching the Item list with Annotated Units
You can set up your item list and annotations so that the numbers displayed on your units in plan view, match up with the item list. To do this please follow the below steps:
1. Go to View Item List.

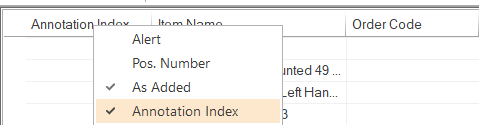

2. Right click on the top of the first field heading and select Annotation Index.
3. Back in plan view, click on the Annotate Tab.

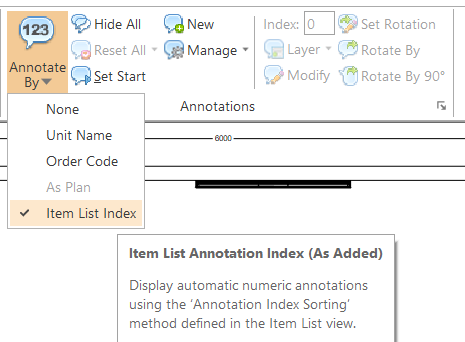

4. Under the Annotations section, click on the drop down arrow on the Annotate By button.
5. Select Item List Index.

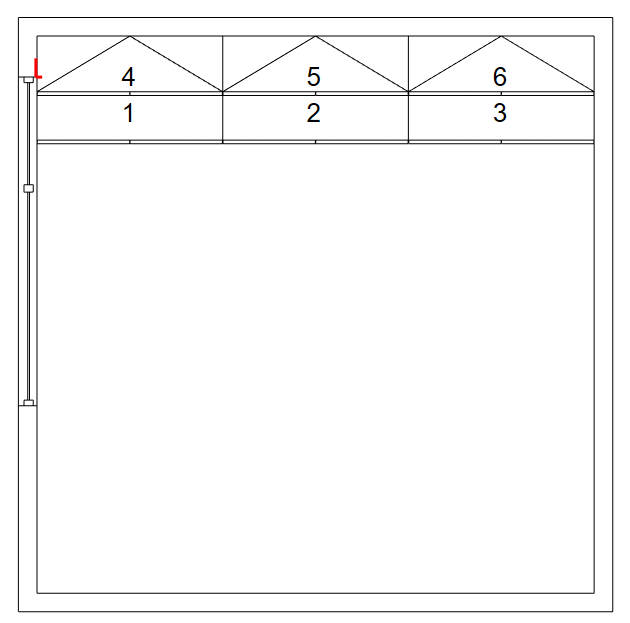

6. The units should now be numbered like the below.
7. You will now find that these numbers correspond with the annotation index in the item list.

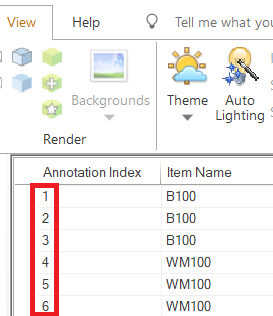

8. The item list should now look something like the below.
