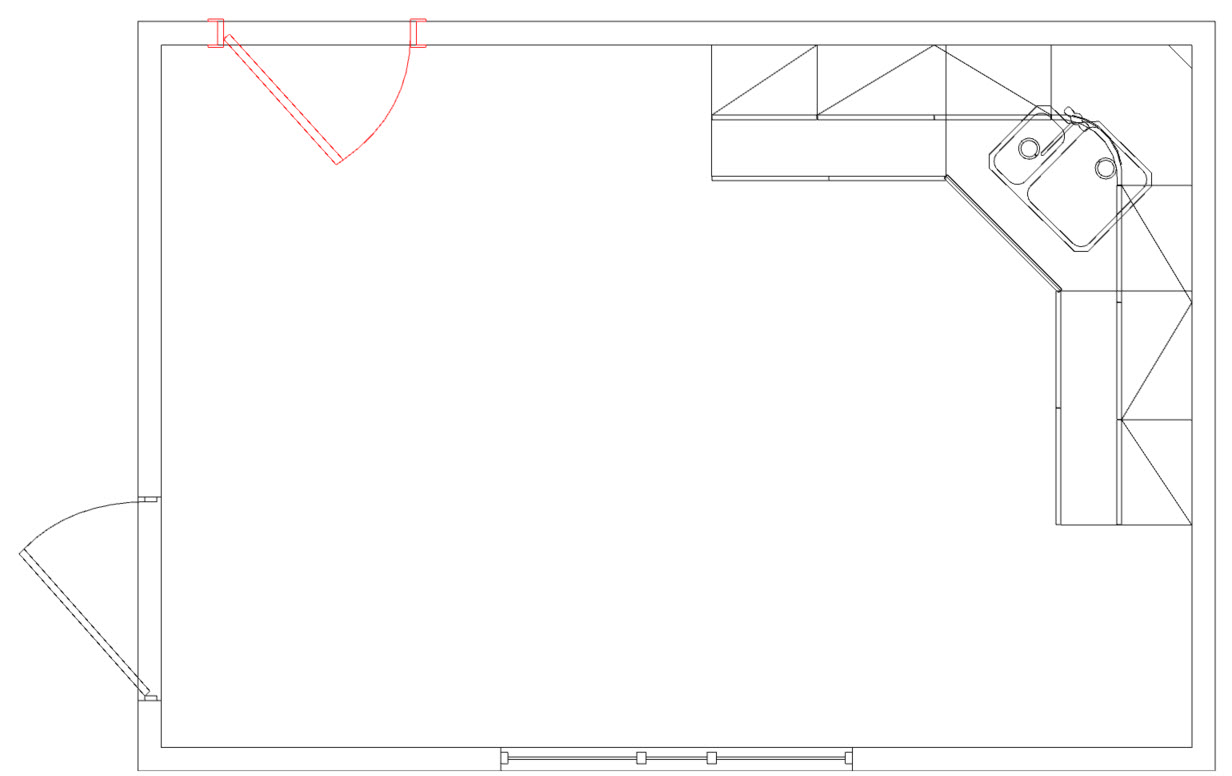

By default, the added room door(s) are open in Plan view to show the handing (right or left) and hinge (inner or outer) of the door.
However, if you wish to have the door(s) closed or shut in plan view, follow the steps below.
To close selected door(s)
1. Select the door you wish to close in the plan view.

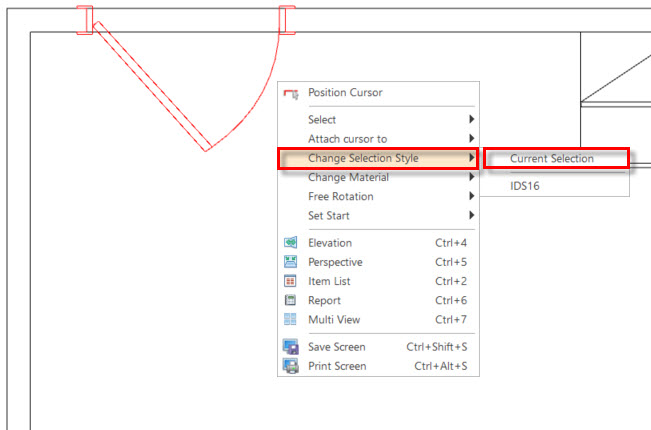

2. Right-click Change Selection Style Current Selection

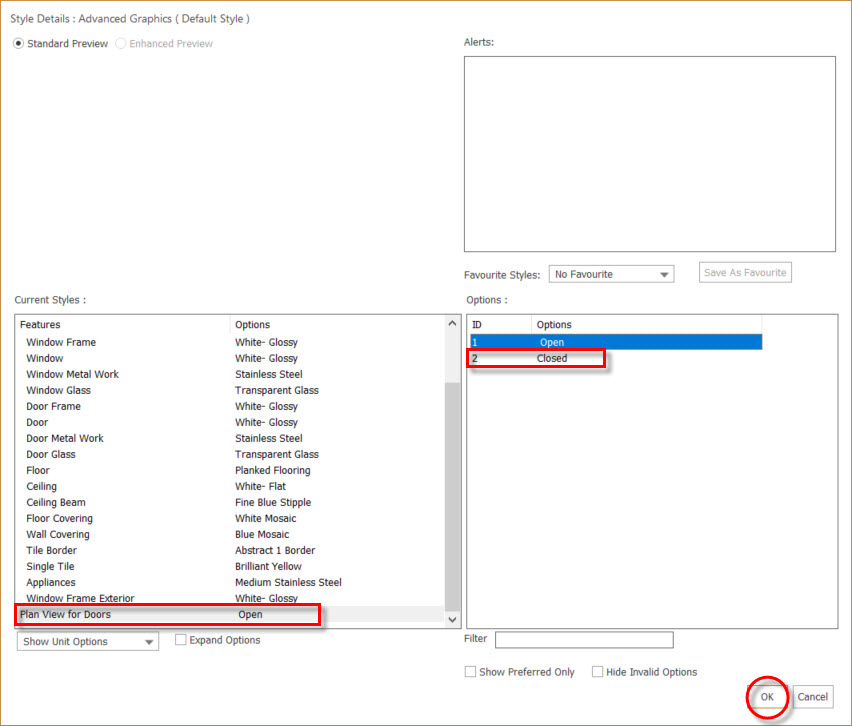

3. This will bring up the 'Style Details' window. Click on 'Plan View for Doors' and select 'Closed'. Click OK to complete.

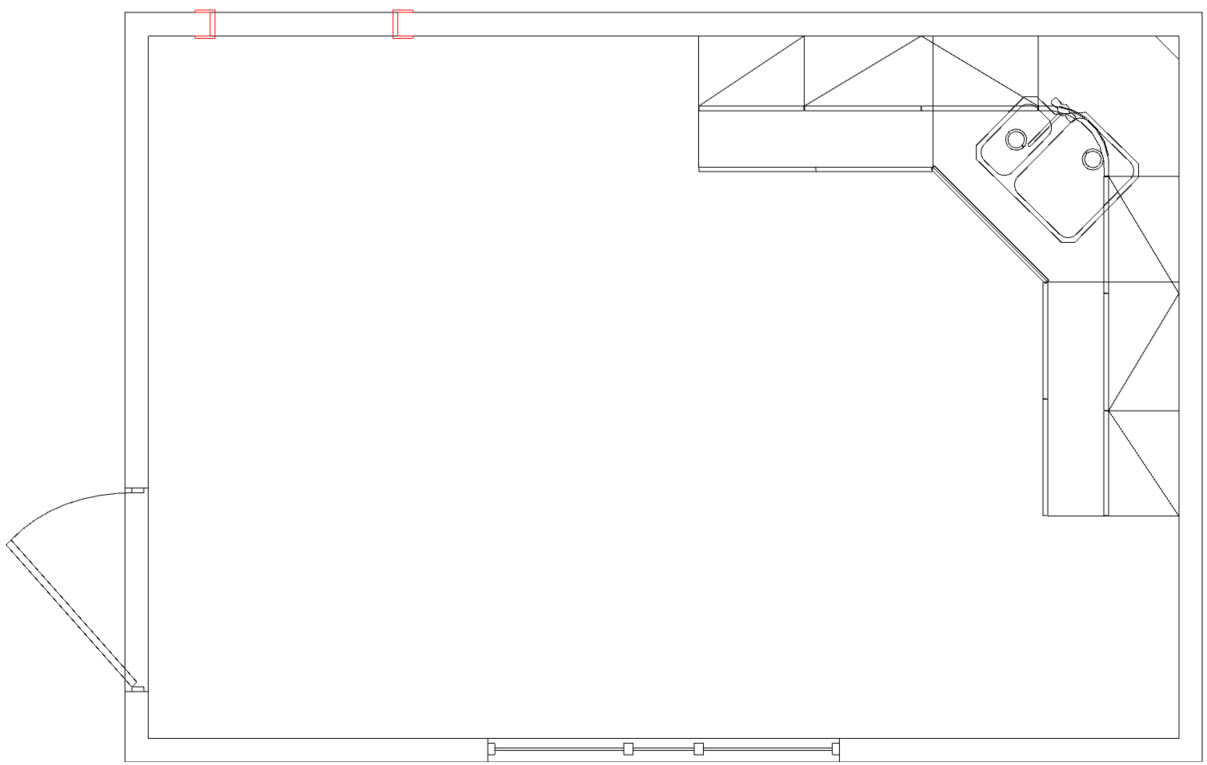

4. This will close the selected door(s) in plan view.
To close all doors

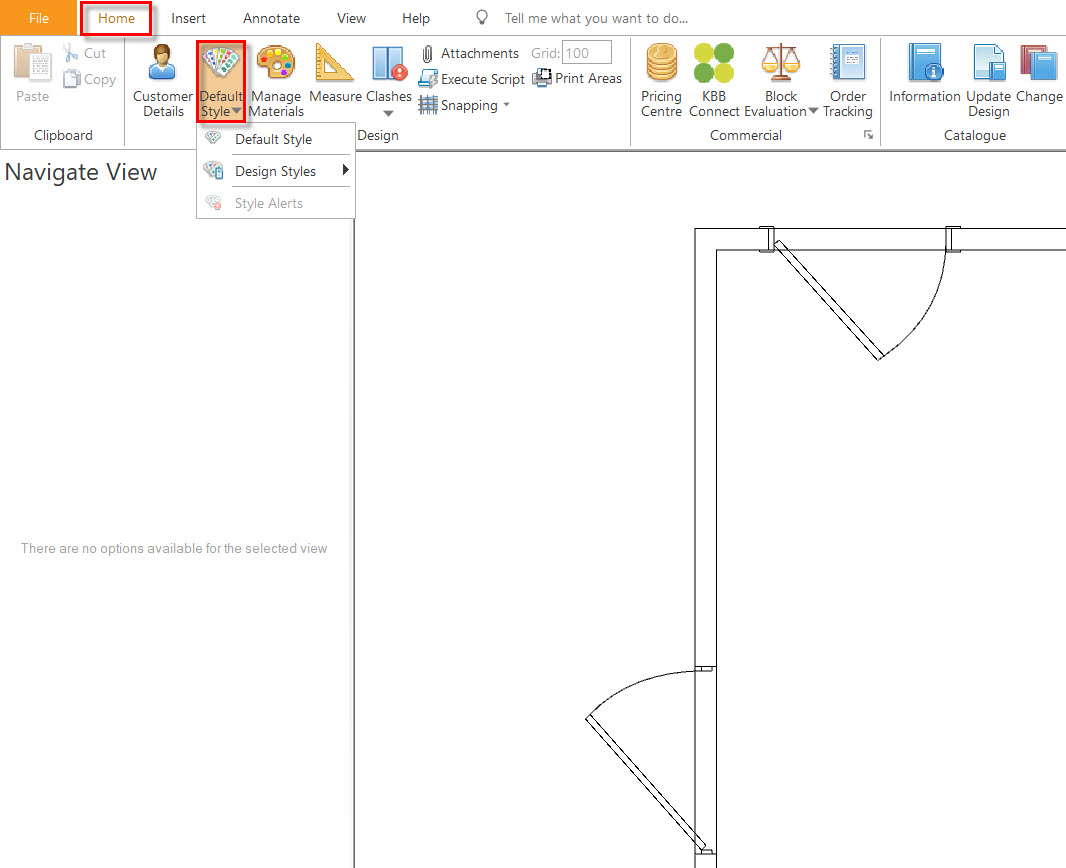

1. Go to Home Default Style

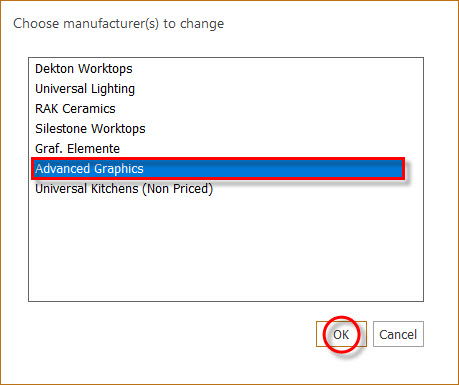

2. This will bring the 'Choose manufacturer(s) to change' window. Select Advanced Graphics and click OK.

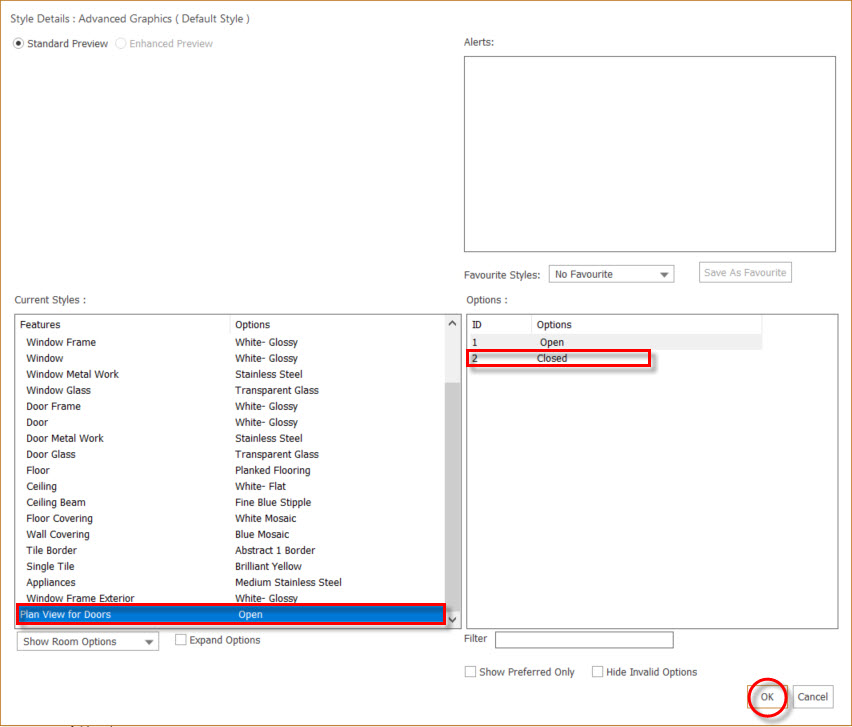

3. This will bring up the 'Style Details' window. Click on 'Plan View for Doors' and select 'Closed'. Click OK to complete.

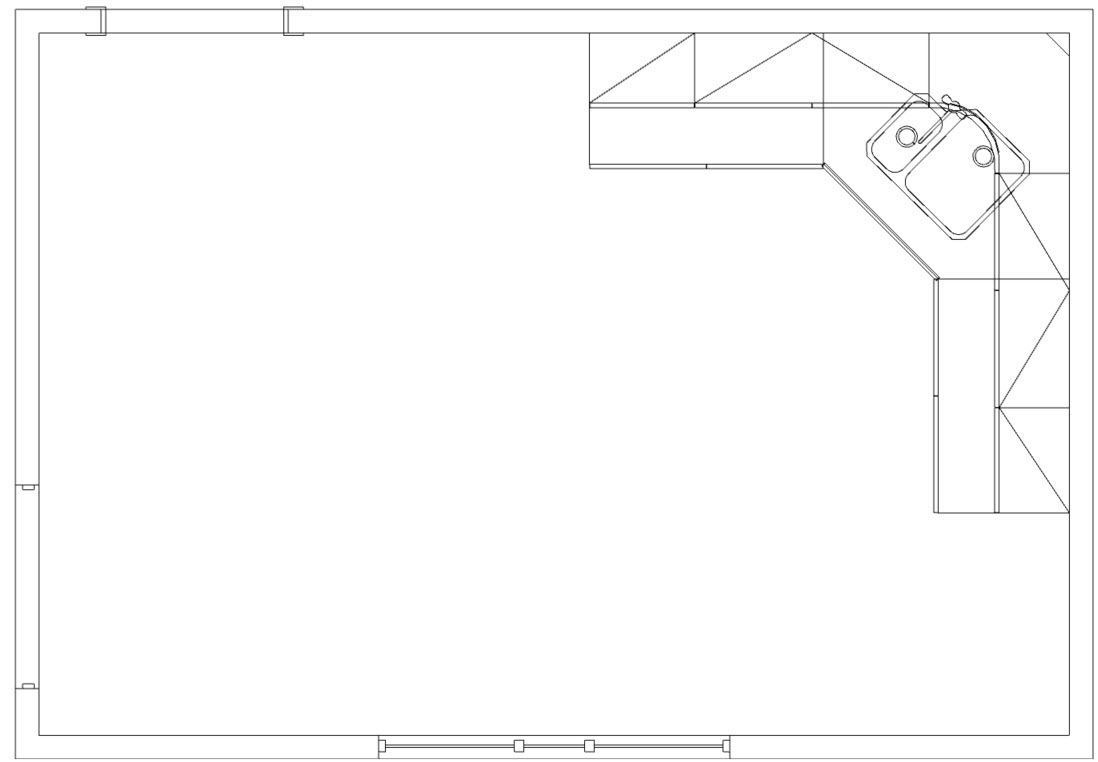

4. This will close all doors in plan view.
