Adding skirting to a 2020 Fusion design is achieved by following the steps below.
1. Ensure you're in Plan view mode.
2. Search for the wall skirting required via the Catalogues Items palette.

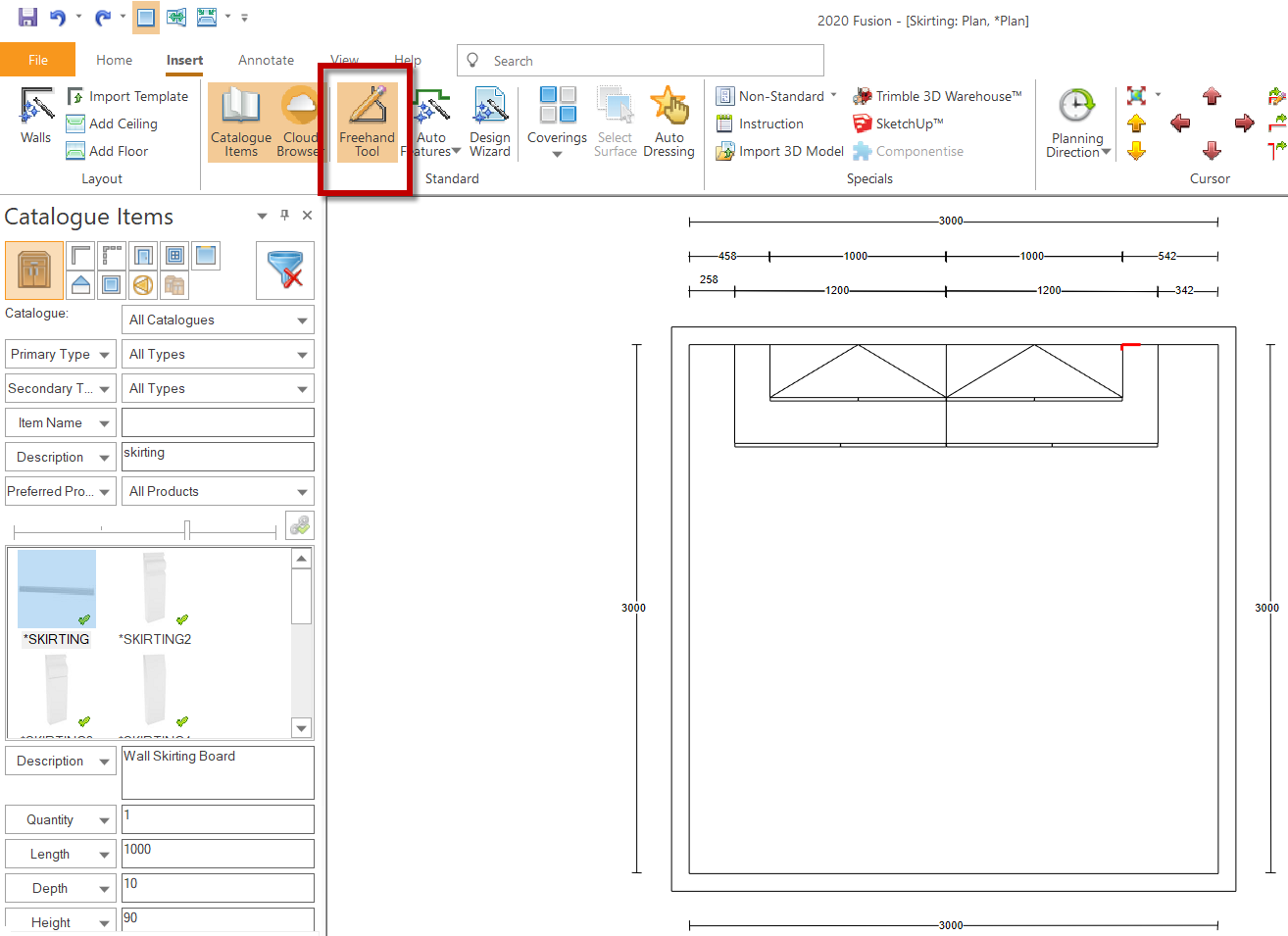

3. Select the Insert tab from the ribbon.
4. Click on the Freehand Tool. It will then be highlighted to show it is active.

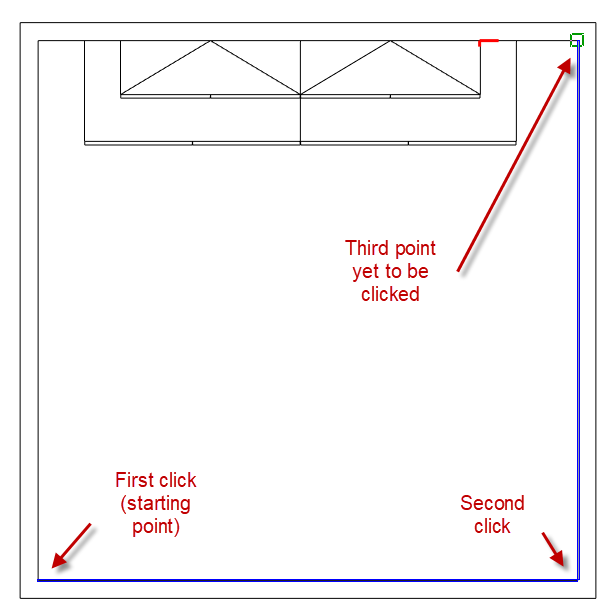

5. Click on the starting point desired on the wall once with the mouse. A square will be displayed on the selected starting point.
6. Without the mouse button clicked, drag the mouse to the next point where the wall skirting should end and click once.
7. If skirting is to be added to multiple walls in sequence, each point can be clicked on and the Freehand Tool will follow the path selected and automatically add skirting to the walls.

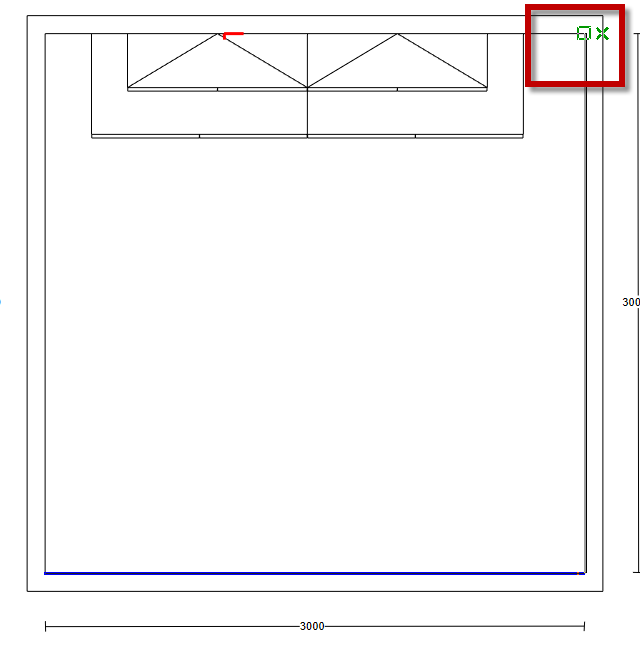

8. To exit the Freehand Tool function, simply click on the final point once to make it the end point, and then once again on the square.
How to Add Skirting to a 2020 Fusion Design
