What are virtual walls? How to add a virtual wall?
Virtual walls can be used to make it easier to add, view and set the dimensions of items used in island configurations.
To add virtual walls, follow these steps:

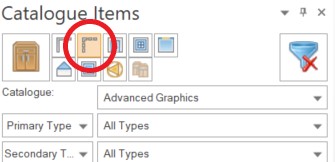

1. Go to Catalogue Items Virtual Walls Selector (shortcut keys: CTRL + SHIFT + R).

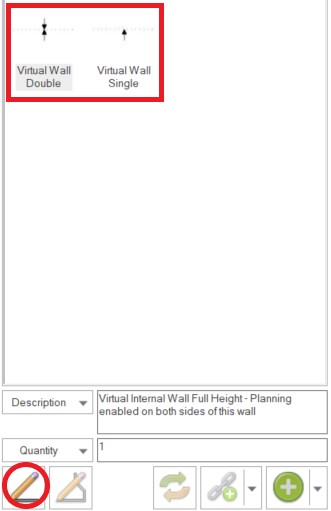

2. Select the virtual wall of your choice and select the single line tool (shortcut keys: CTRL + SHIFT + 9)

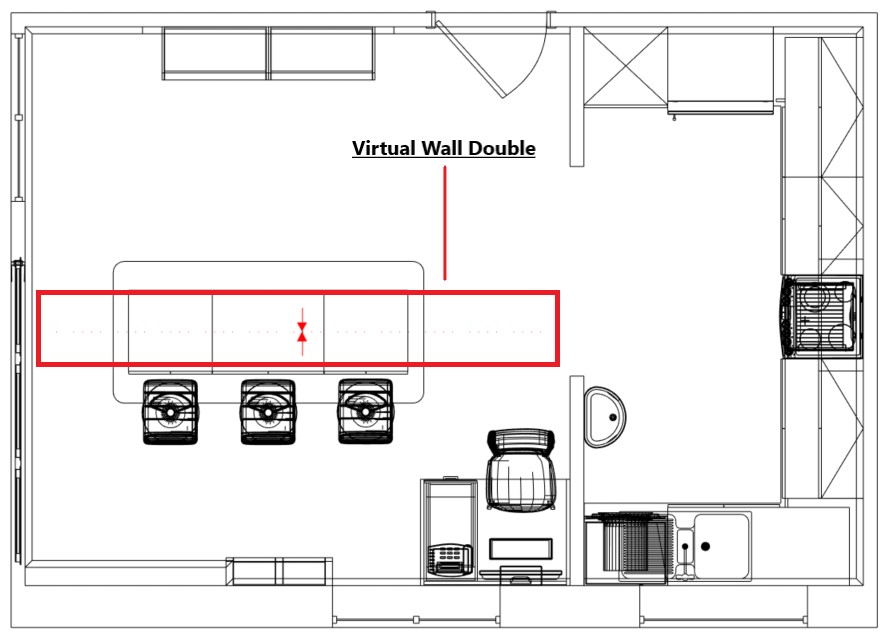

[For example, Virtual Wall Double]

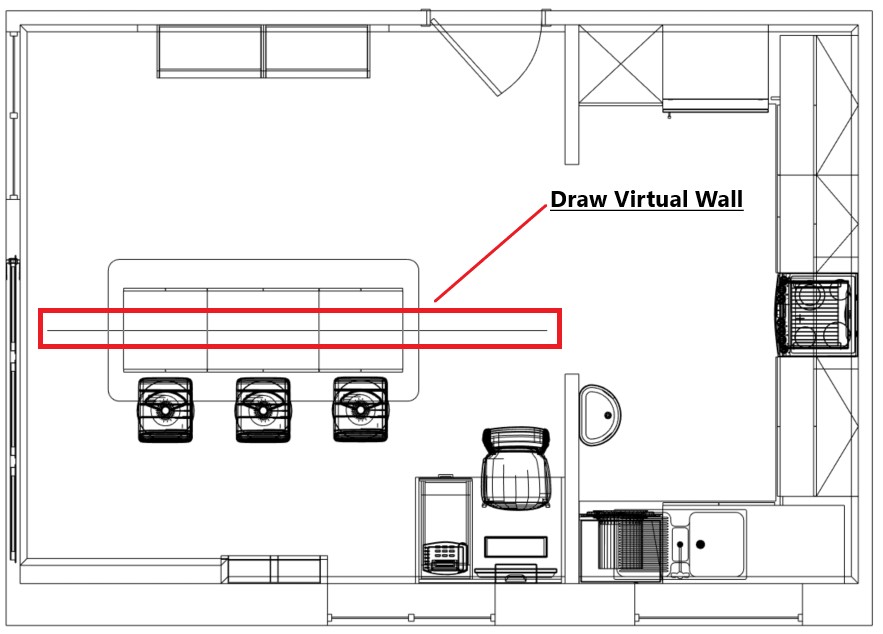

3. Once the Single Line Tool has been selected, within Plan View, left click to start drawing the virtual wall and left click again to complete the virtual wall.
4. Once the Virtual Wall has been added, go to Elevation View.

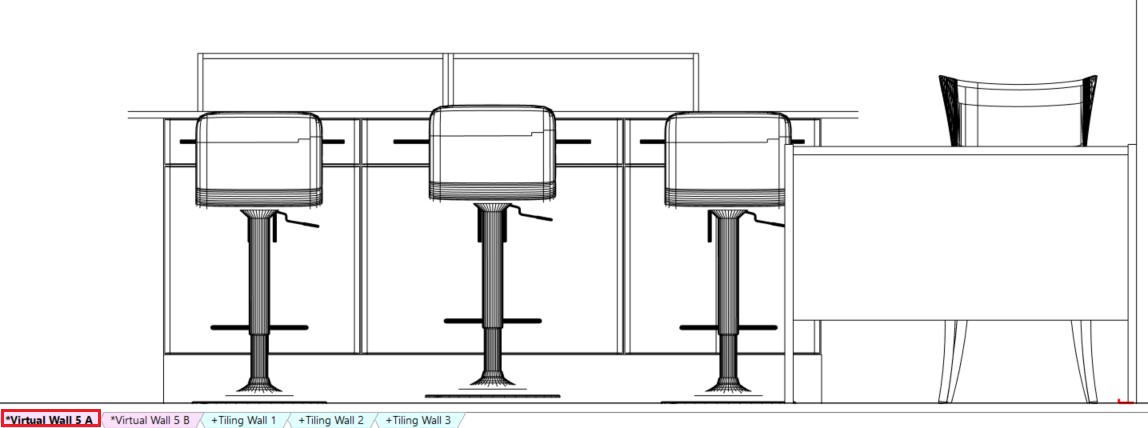

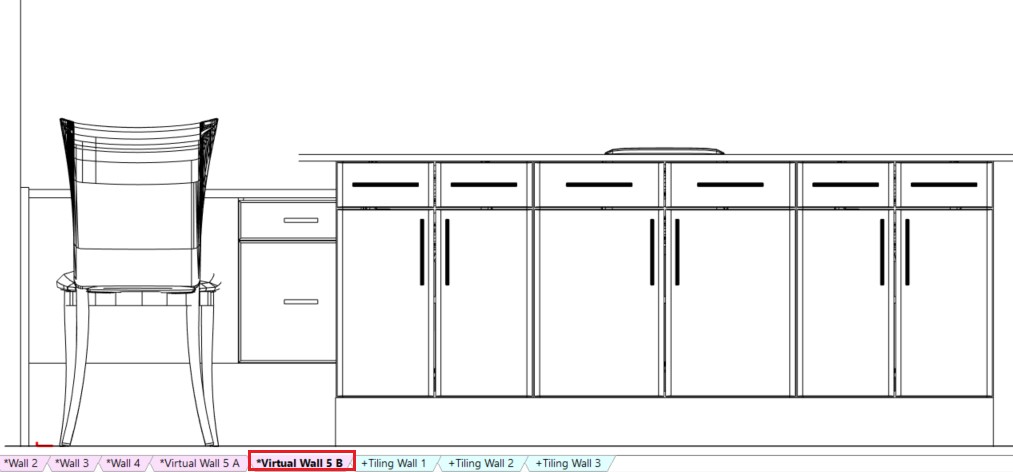

You should see *Virtual Wall A and *Virtual Wall B have been added (if you have used Virtual Wall Single, you should see 1 *Virtual Wall added).
5. In Elevation View, click on the *Virtual Wall to view units from drawn wall axis.
6. A Virtual Wall can also be used to view units and dimensions falling under the parameter of the drawn virtual wall.

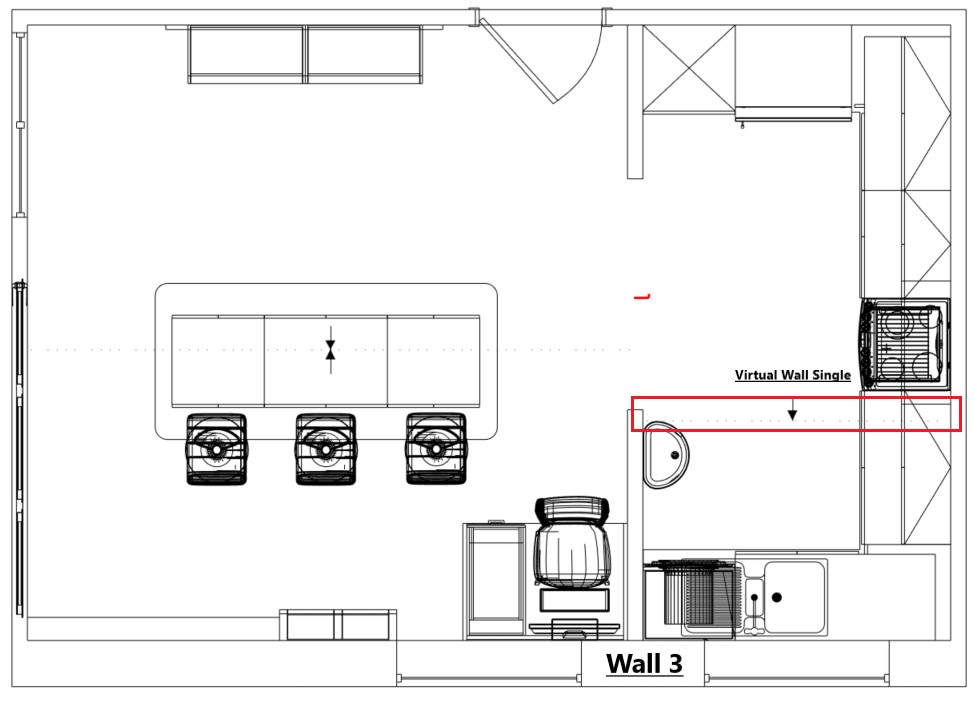

[Plan View]

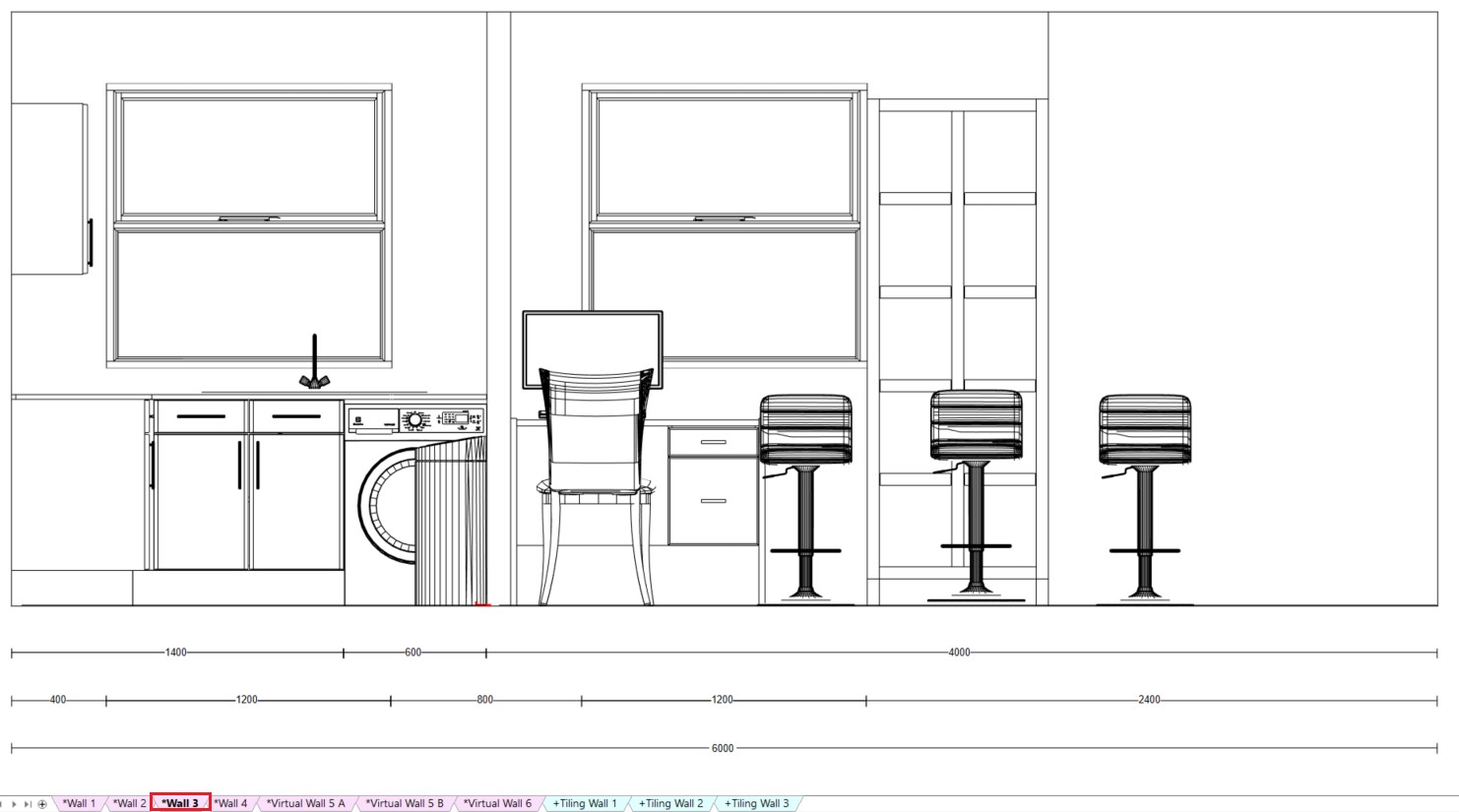

[Wall 3, Elevation View]
For example, as shown below, if you wish to view a part of a wall and not the entire wall, you may use the virtual wall to view the units and dimensions falling under its parameter.

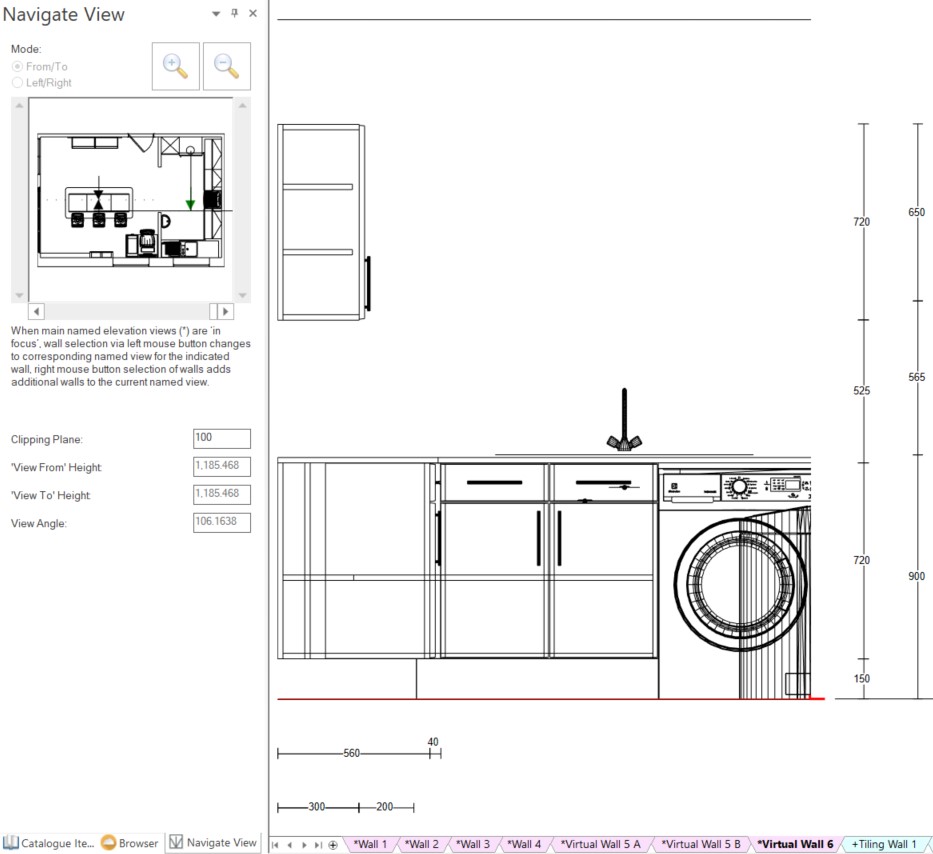

[Virtual Wall, Elevation View]
