1. Create your room utilising the wall wizard as normal.
2. In Plan View go to the Catalogue Items and select the Sloped Ceilings Tool.
3. In the Catalogue Items then select the required parameters.
The Slope Angle will automatically calculate based on the other entered dimensions

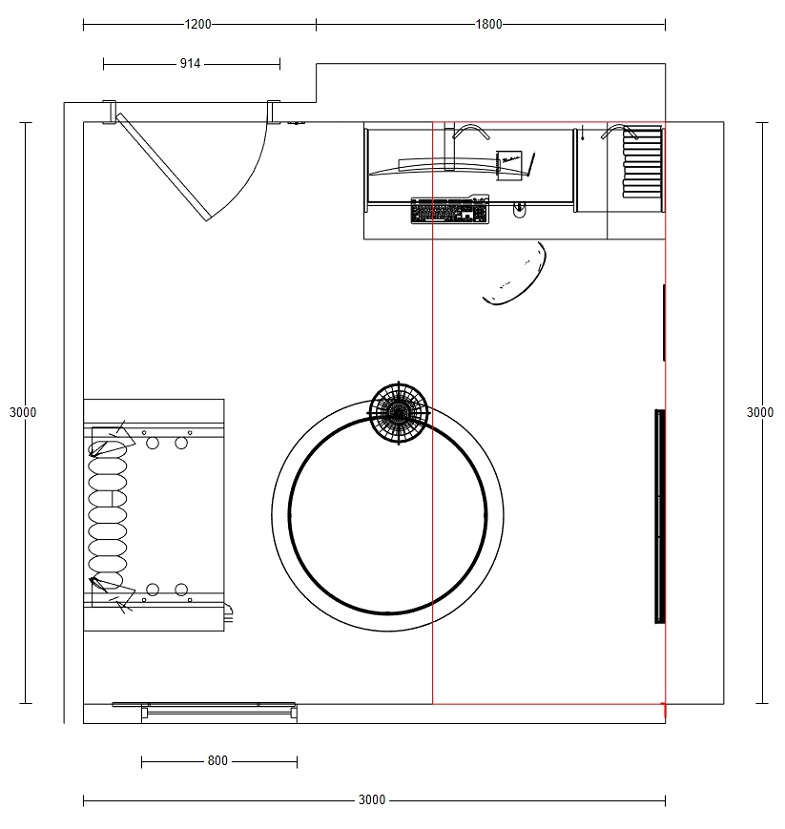

4. On your plan attach your cursor to the wall the slope will be applied to
5. Add your Slope that you have configured now by clicking from the Catalogue Items palette.
If you are going to be adding a Velux window to your Design now is the ideal time to select the wall of the Sloped Ceiling and reduce it's height to match the start of the slope.
How to add a Velux to a sloped ceiling, please click on the link below.
Velux windows
Adding Multiple Sloped Ceilings
1. Follow steps 1-3 as before.
2. Go to Insert and select the "Freehand Tool"

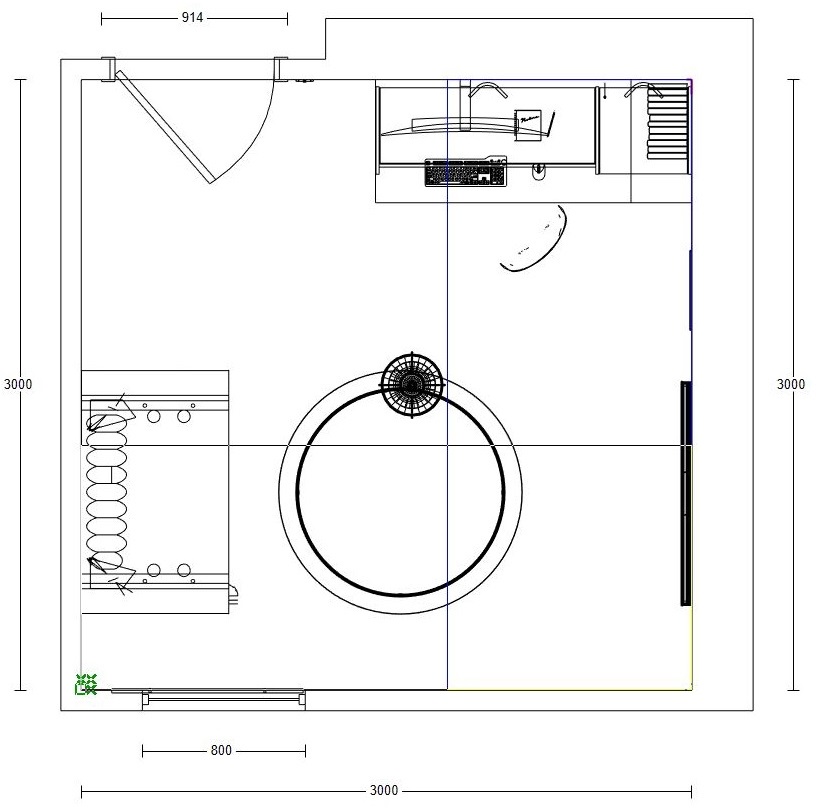

3. On your plan click the Hotspot at your start point and moving in a clockwise direction click on each of your
Hotspots until you reach the final
Hotspot where you double click to finalise
To view videos on how to achieve a sloped ceiling with a Velux window, please click the below link.
Velux windows
