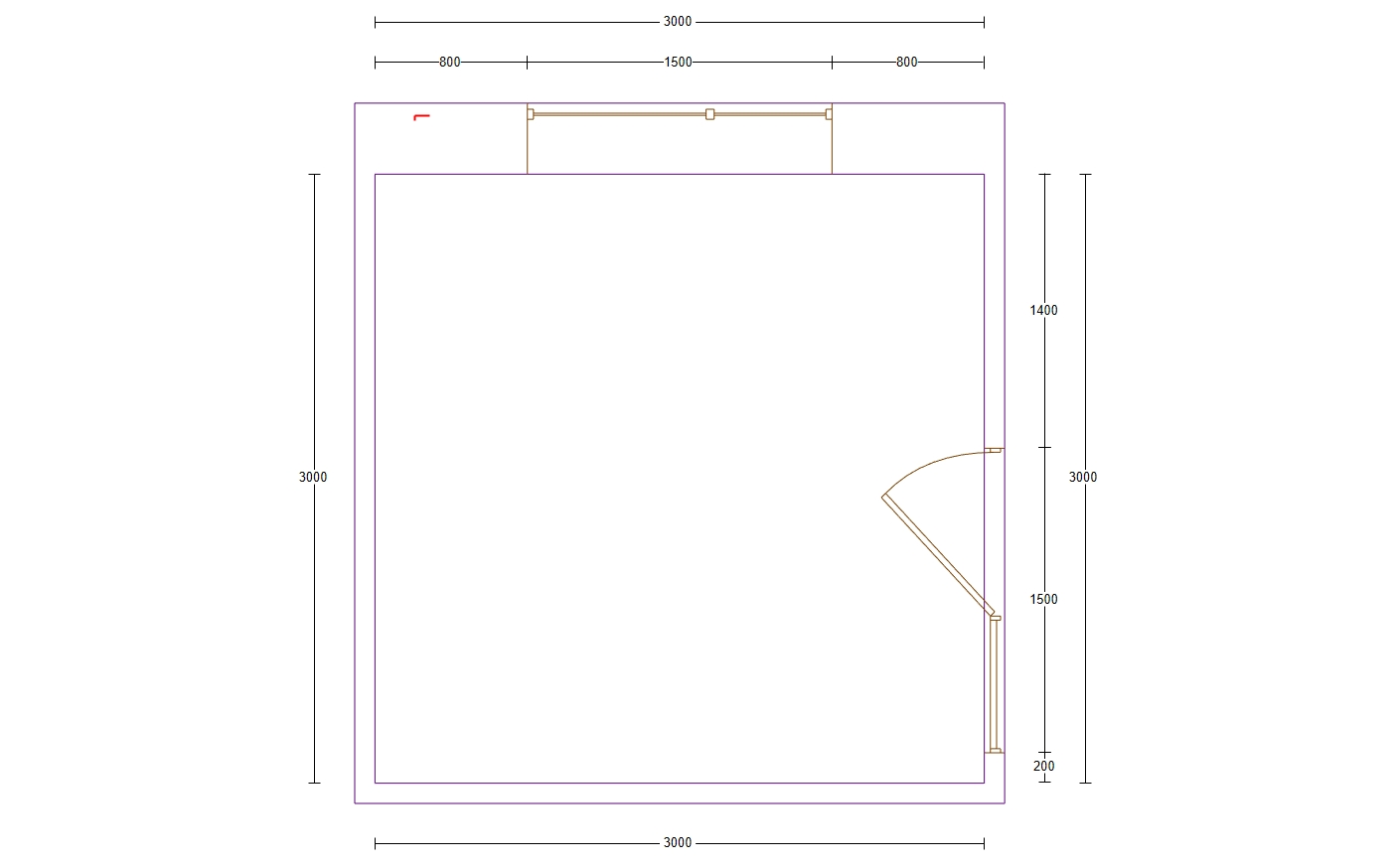

1. Draw your floor plan with windows & doors. You can add your window sill at any stage after the window is inserted, however it is easier to add at floor plan stage as there are less items for the freehand tool to snap to.

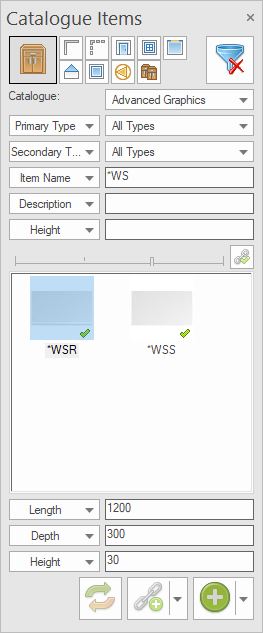

2. In the Catalogue Items Palette select Manufacturers Products Catalogue: Advanced Graphics Item Name *WS this will return the results
3. Select either *WSR or *WSS from the palette and go to Insert Freehand Tool

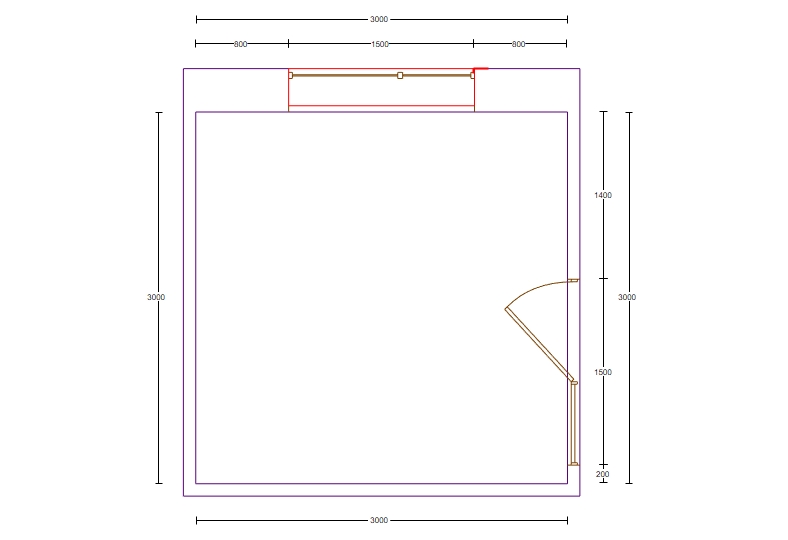

4. On your plan place your cursor at the top right corner of your installed window and click on the

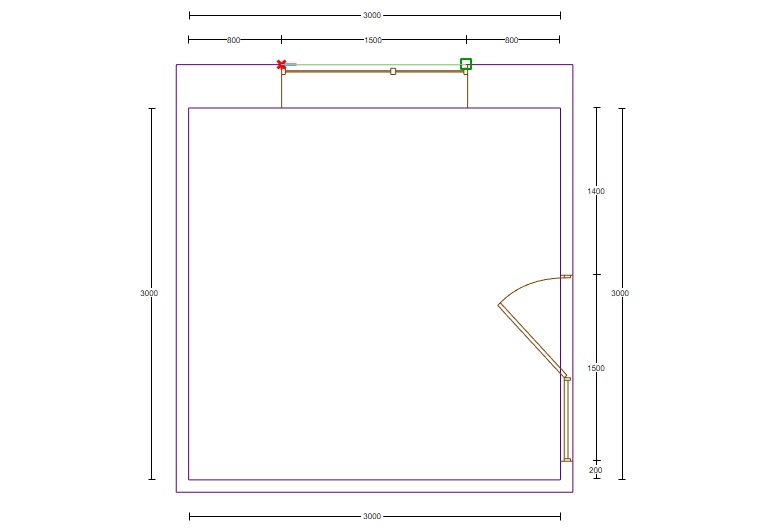

hotspot. draw to the next clockwise
hotspot. as below
5. Your window sill will now be drawn in. Please note that you may have to alter the depth of the window sill depending on the thickness of your wall, This can either be done via the depth field in the catalogue items palette prior to drawing the window sill in or via amending the depth in ItemsDimensions after it has been drawn
How to add a Window Sill in 2020 Fusion
