Please see the steps below for using the "Convex Arc" tool:

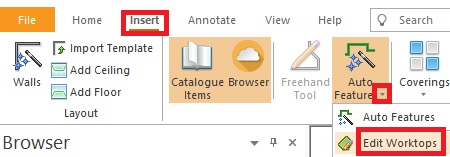

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running Auto Features and ticking the "Edit Worktops" box.
3. Make sure the Convex Arc tool button is selected.
4. Select an edge to apply the convex arc to by left clicking on one of the red squares.
5.You can now apply your convex arc to your selected side by moving the mouse and left clicking when you want to stop.
Alternatively, you can enter the exact measurement in the X offset or "Radius" fields after left clicking the red square and pressing Enter once you have entered the value.
6. Once you have applied your convex to your required edge(s), click through the Next Stage buttons and click Finish.
