Please see the steps below for using the Concave Corner Curve tool:

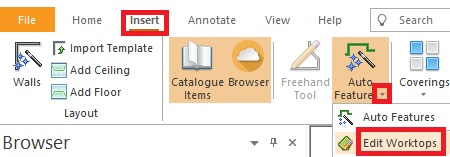

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running Auto Features and ticking the Edit Worktops box.
3. Make sure the Concave Corner Curve tool button is selected.

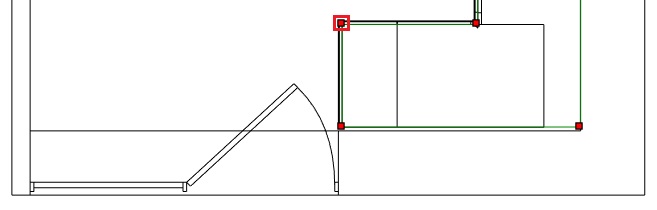

4. Select a corner to cut by left clicking on one of the red squares.
5. You can now curve your selected corner by moving the mouse and left clicking when you want to stop.
Alternatively, you can enter the exact measurement in the X and Y offset after left clicking the red square and simply press Tab after entering the value of X and Enter once you have input the value of Y.
6. Once you have curved your required corners, click through the next stage buttons and click finish.
