Please see the steps below for using the Single Corner Cut tool:

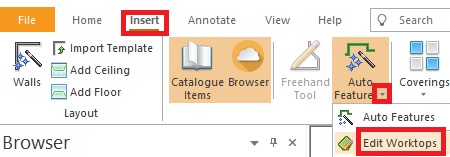

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.

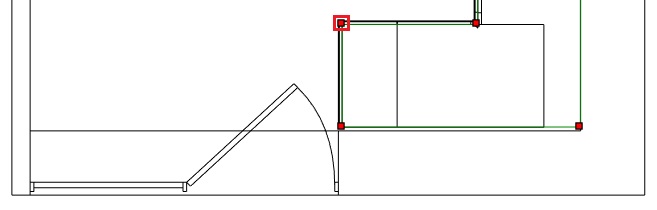

Note: This can also be accessed when running Auto Features and ticking the "Edit Worktops" box.
3. Make sure the Move Corner Point tool button is selected.
4. Select a corner to move by left clicking on one of the red squares.
5. You can now move your selected corner by moving the mouse and left clicking when you want to stop. You will only be able to move horizontally or vertically. To move the corner point horizontally and vertically, you will need to repeat the process after locating your first point by reselecting the tool and repeating the process on the opposite axis.
Alternatively, you can enter the exact measurement in the X and Y offset after left clicking the red square and simply pressing Tab after entering the value of X, and Enter once you have entered the value of Y.
6. Once you have positioned your required corners, click through the Next Stage buttons and click Finish.
