Please see the steps below for using the "Extend into Sill" tool:

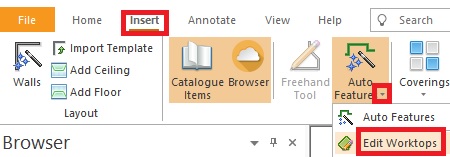

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running Auto Features and ticking the "Edit Worktops" box.
3. Make sure the Extend into Sill tool button is selected.

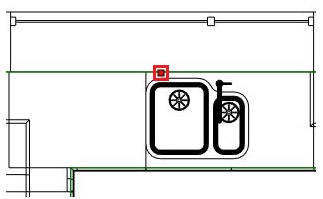

4.Select the Hotspot that becomes active in front of the window once you have selected the Extend into Sill tool.
5. You can now move your selected Hotspot by moving the mouse and left clicking when you want to stop, or by entering the required value into the "Thickness" field of the "Information" section. Please note that the Extend into Sill tool will only offer an active Hotspot if the bottom height of the window is the same as the bottom height of the worktop.
6. Once you have positioned your Hotspot, click through the Next Stage buttons and click Finish.
