Please see the steps below for using the Concave Arc tool:

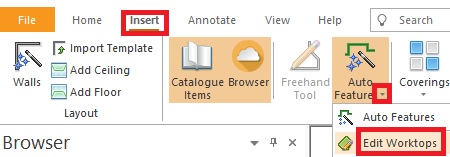

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running "Auto Features" and ticking the "Edit Worktops" box.
3. Make sure the Concave Arc tool button is selected.
4. Select an edge to apply the concave arc to by left clicking on one of the red squares.
5.You can now apply the concave arc to your selected side by moving the mouse and left clicking when you want to stop.
Alternatively, you can enter the exact measurement in the X offset or "Radius" fields after left clicking the red square and pressing Enter once you have inputted the value.
6. Once you have applied your concave to your required edge(s), click through the Next Stage buttons and click Finish.
