See the steps below for using the "Move Joint Vertex Position"

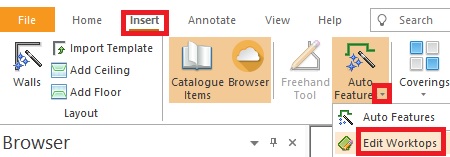

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running Auto Features and ticking the Edit Worktops box.
3. Insert or edit your worktops as detailed in How to Freehand Worktops Using Edit Worktops in 2020 Fusion or by using Auto Features.

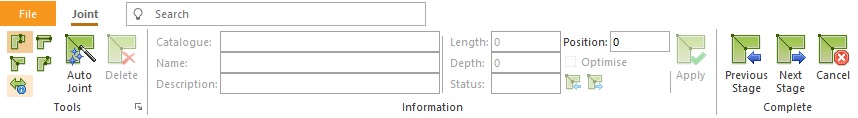

4. Click Next and this will bring you to the "Jointing and Grain Direction" options.

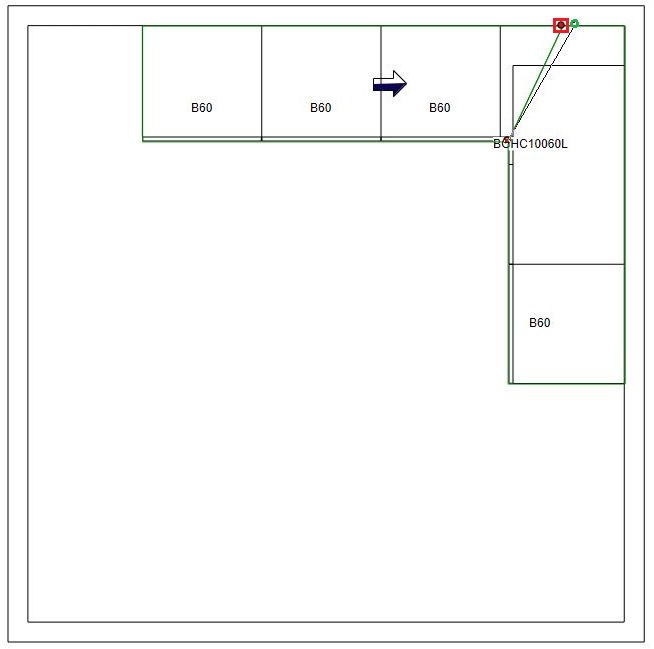

5. Select the Move Joint Vertex Position. You will now see dots at either end of your joints
6. Click the point you wish to move and either drag into position or type the value of the amount you wish to move the vertex position and click Apply.
7. Once you have positioned your joints to the worktop, click through the Next Stage buttons and click Finish.
