Requiring an easy and obvious method to distinguish walls within a design while in the Plan view.
These are the four available choices to help designers plan more efficiently and to distinguish between specific walls in a room.
In order to set up and maintain wall hatching in 2020 Fusion by default, follow these steps.

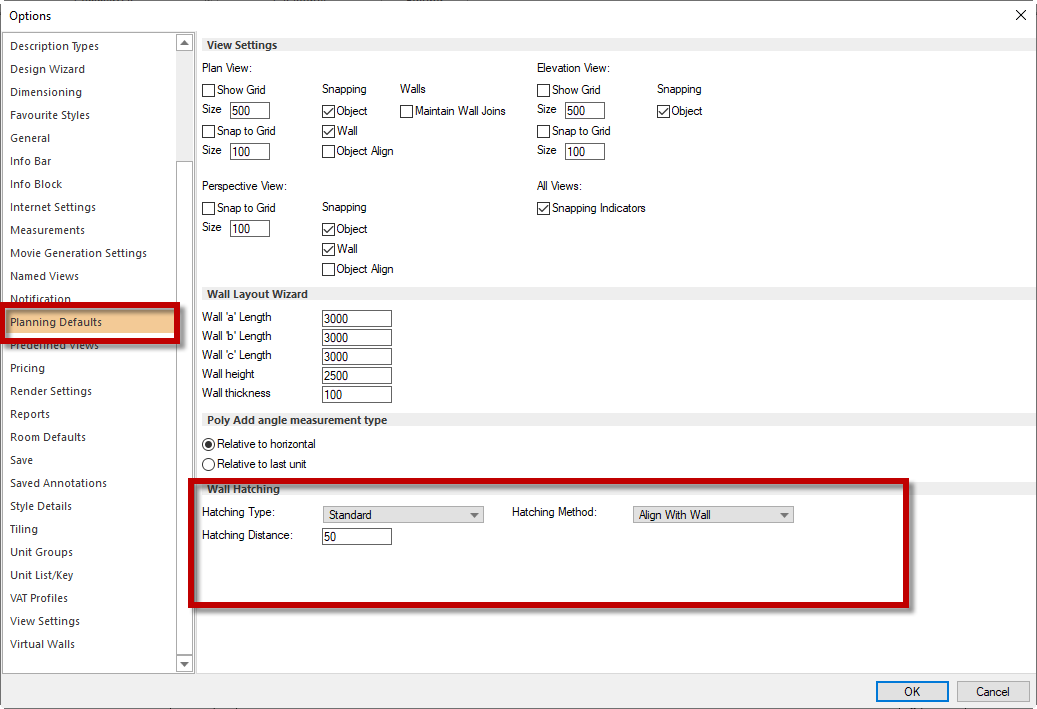

1. Click on the Options menu.
2. Click on Planning Defaults.
3. Select among the four wall hatching choices available in 2020 Fusion.

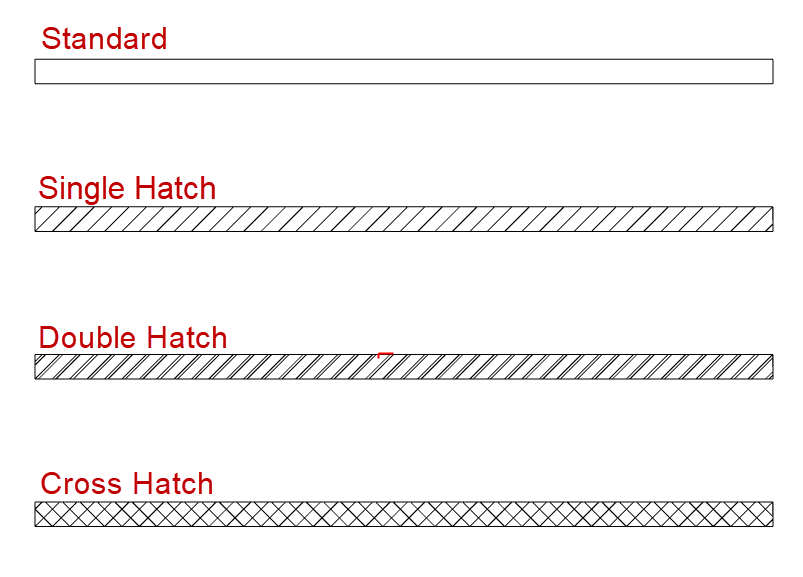

The Hatching Type drop down menu contains the four available choices.
The Hatching Distance field allows the user to place a specific distance between each hatch mark.
The Hatching Method drop down menu provides two choices. The first of which is to Align With Wall and the second is Align with Design Origin. Please refer to the examples below.

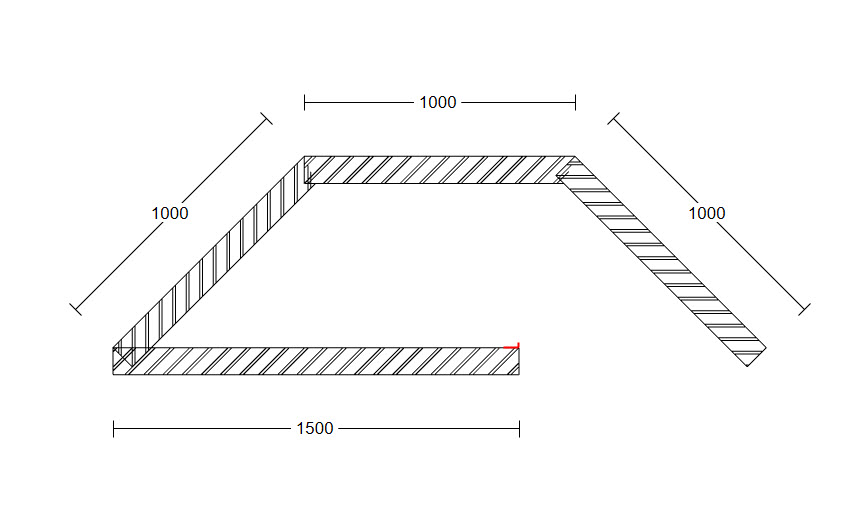

Align with Design Origin:

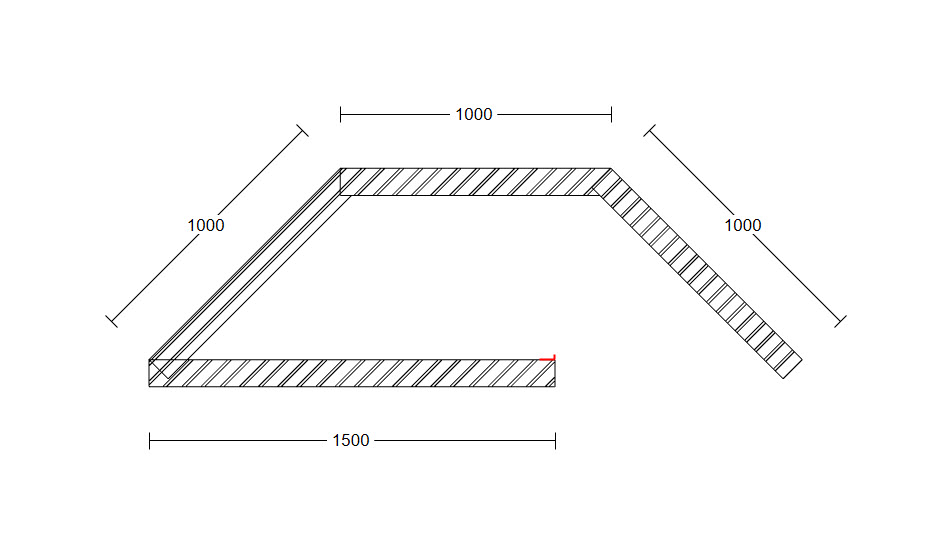

Align with Wall:
