What is a grid? How to enable or disable grid. How to increase or decrease the size of grid. How to snap items to grid?
'Grid' in 2020 Fusion is an option that assists with planning a design. This option is available in 'Plan' view and 'Elevation' view.
To enable 'Grid,' please follow these steps.
1. Go to View tab then click on the Grid icon.

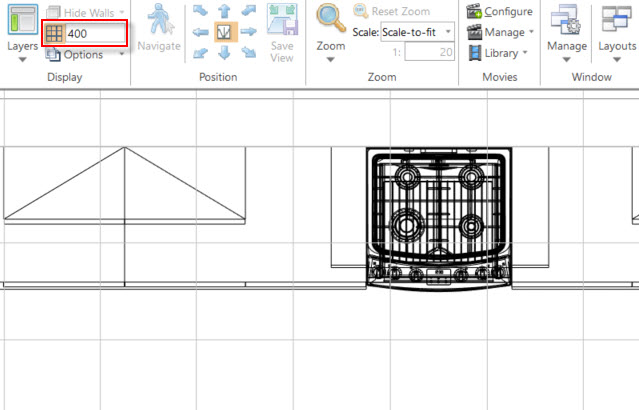

2. This will enable the grid as shown below.
3. To decrease the grid size, decrease the grid value.
4. To increase the grid size, increase the grid value.
5. To enable items to snap to grid, go to Home Snapping Snap To Grid.
6. To disable items to snap to grid, go to Home Snapping and deselect Snap to Grid from the drop-down menu.
[Note: Making changes using this method will only apply to the current design]
If you wish to set default grid settings to new or existing designs, go to File Options Planning Defaults
