Applies to
2020 Fusion
Question
How do I launch the Catalogue Editor in 2020 Fusion?
Answer
When using 2020 Fusion with a Connect Database:
In order to use the Catalogue Editor the catalogue needs to be checked out. To learn how to Check Out a Catalogue please refer to the below linked article.
How to Check Out / Check In a Catalogue from 2020 Fusion
When the catalogue is checked out, it will appear like so in the Manage Catalogues window.

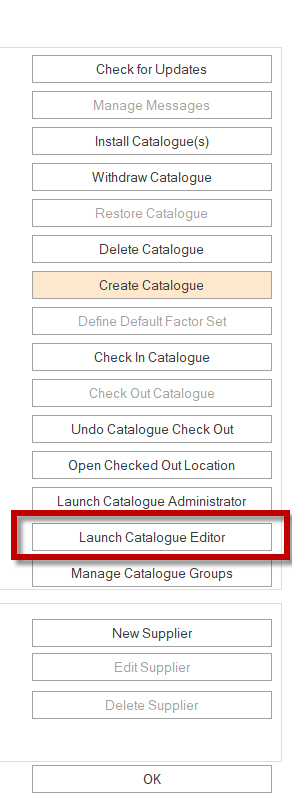

1. With the catalogue already checked out, it does not need to be highlighted.Simply click on the Launch Catalogue Editor button from the right side of the Manage Catalogue window.

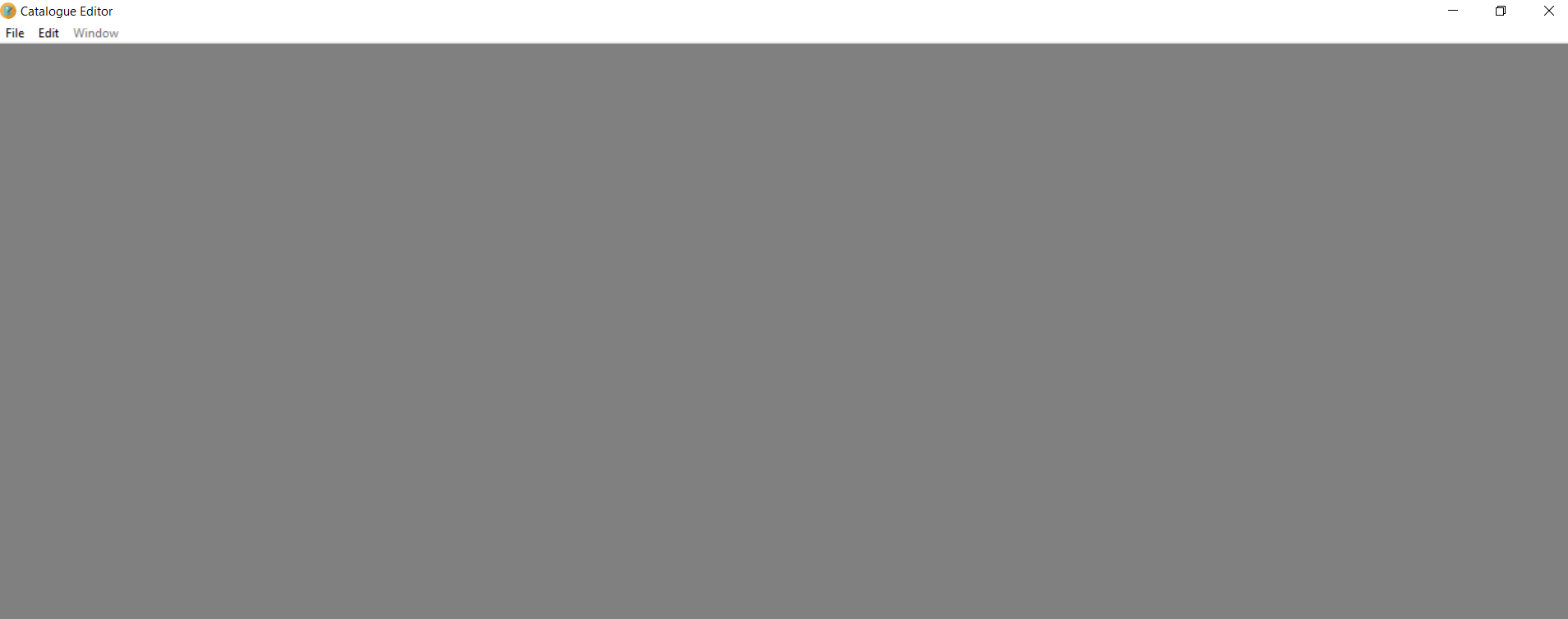

The Catalogue Editor will Launch and will look like this.
2. To access the catalogue that needs to be edited go to the File menu and select Open from the options.

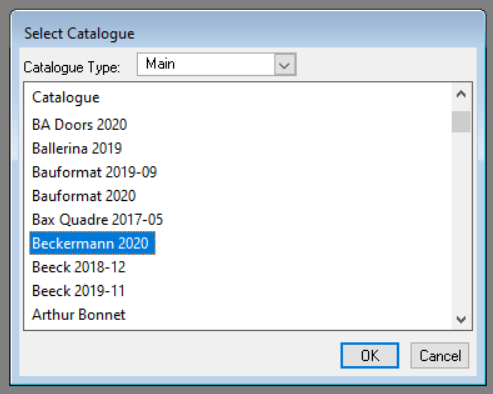

3. The Select Catalogue window will appear. From here select the catalogue that would need to be edited.
When all edits are completed do not forget to Check In the catalogue.
When using a 2020 Fusion in Standalone:

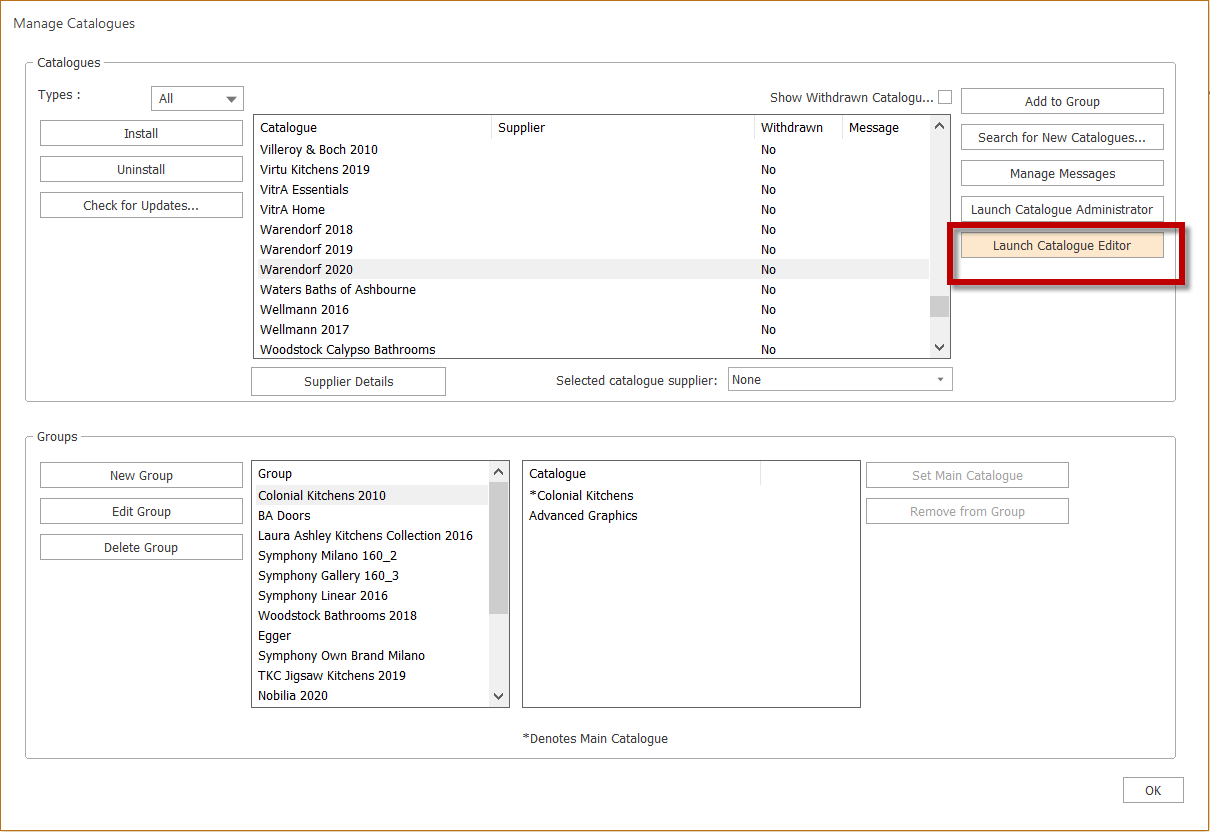

1. From the Manage Catalogues window, simply click on Launch Catalogue Editor.
The Catalogue Editor will Launch and will look like this.
2. To access the catalogue that needs to be edited go to the File menu and select Open from the options.

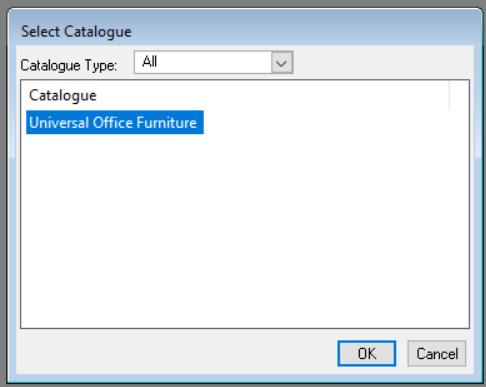

3. The Select Catalogue window will appear. From here select the catalogue that would need to be edited.
