How to Draw a Worktop Upstand in 2020 Fusion

To draw a worktop upstand, follow the steps below:

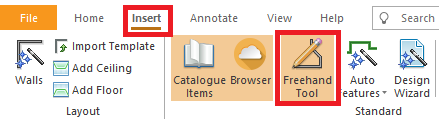

1. Go to the Insert tab and choose Catalogue Items.


2. In the description field, type in "upstand". In the example below, we are using Universal Kitchens, but other catalogues can be used too.


Note that you can choose the height within the catalogue items palette too.

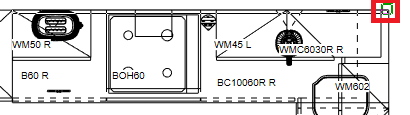

3. In Plan view, select the Freehand Tool (or Multi Line tool in Version 7 or below).







4. Using the snapping points, draw in where you want your upstand.

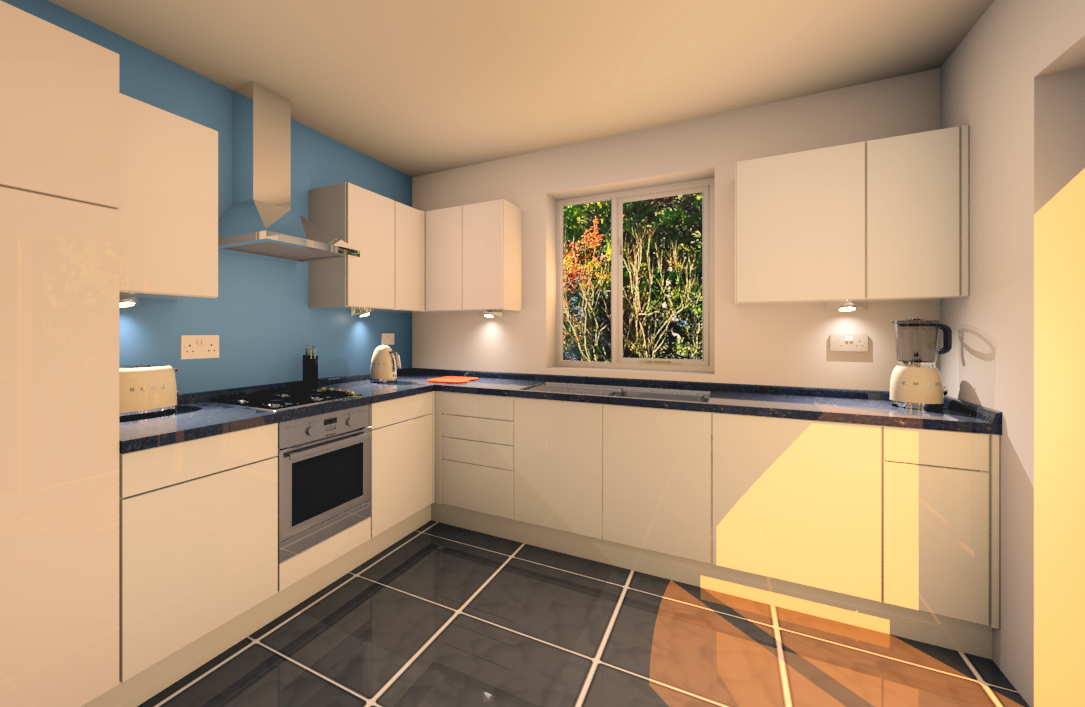

5. The worktop upstands will now be added.
