See the steps below for how to delete an applied worktop joint.

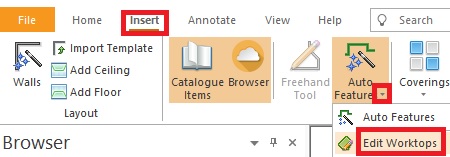

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running Auto Features and ticking the Edit Worktops box.
3. Insert or edit your worktops as detailed in How to Freehand Worktops Using Edit Worktops in 2020 Fusion or by using Auto Features.

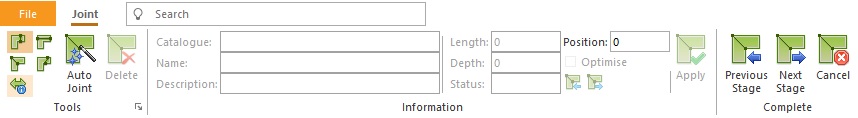

4. Click Next and this will bring you to the "Jointing and Grain Direction" options.

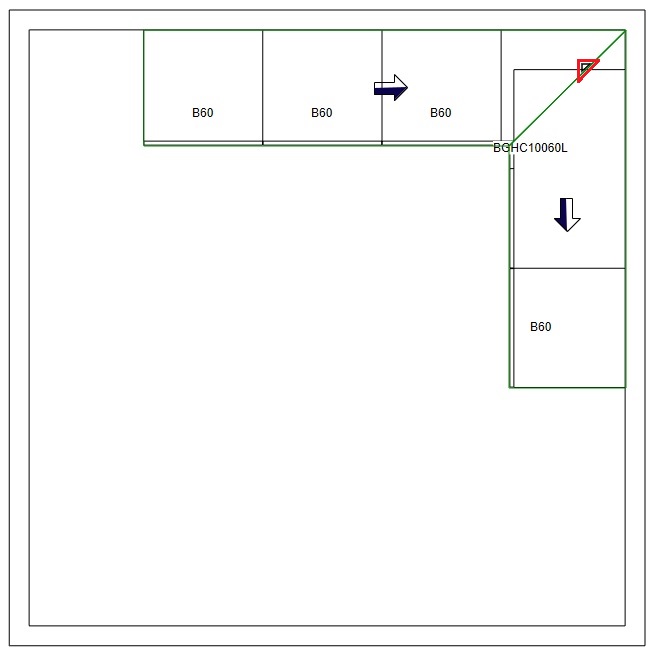

5. Select the joint you wish to delete by clicking on the triangle shown on the line of the joint.
7. Delete option will become active once a joint is selected. Click on Delete and the joint will be removed, click through the Next Stage buttons and click Finish.
