How to change the default witness line style. How to change the witness line style in an existing design.
If you wish to change the default Witness Line Style, follow to steps below:
1. Go to File Options Dimensioning

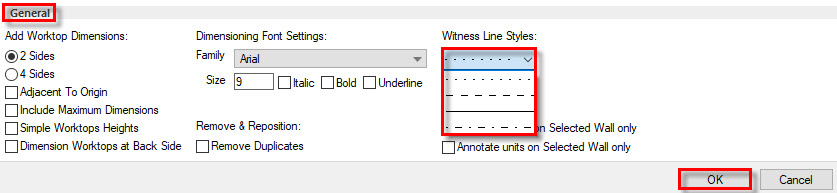

2. To change the Witness Line Style, within the General Settings section, click on the Witness Line Styles drop down menu and
select the style you wish to set as default. Click OK to complete.
[Note: The changes will take effect on new designs you would create from this point forth and won't take effect on existing designs].
If you wish to change the Witness Line Style on an existing design, follow to steps below:
1. Open the design, go to the Annotate Witness Line Style drop down menu and select the style you wish to use.
2. This will change the witness line style as per your selection on the current design.
If you wish to change the Dimension Rail End Style, please refer to the article on How to Change the Dimension Rail End Style in 2020 Fusion
