How to change the dimension rail gaps in an existing design. If you wish to change the Dimension Rail Gaps in an existing design, follow the steps below.
1. Open the design, select the view you wish to change the dimension rail gap settings (plan or elevations).
Go to the Annotate tab Rail Configuration section
2. In the Rail Configuration section, change the Initial Rail Gap and Subsequent Gaps value.
(With the settings below, the gap between the first dimension line and the wall will be 200 mm and the gap between the dimensions will be 200 mm)

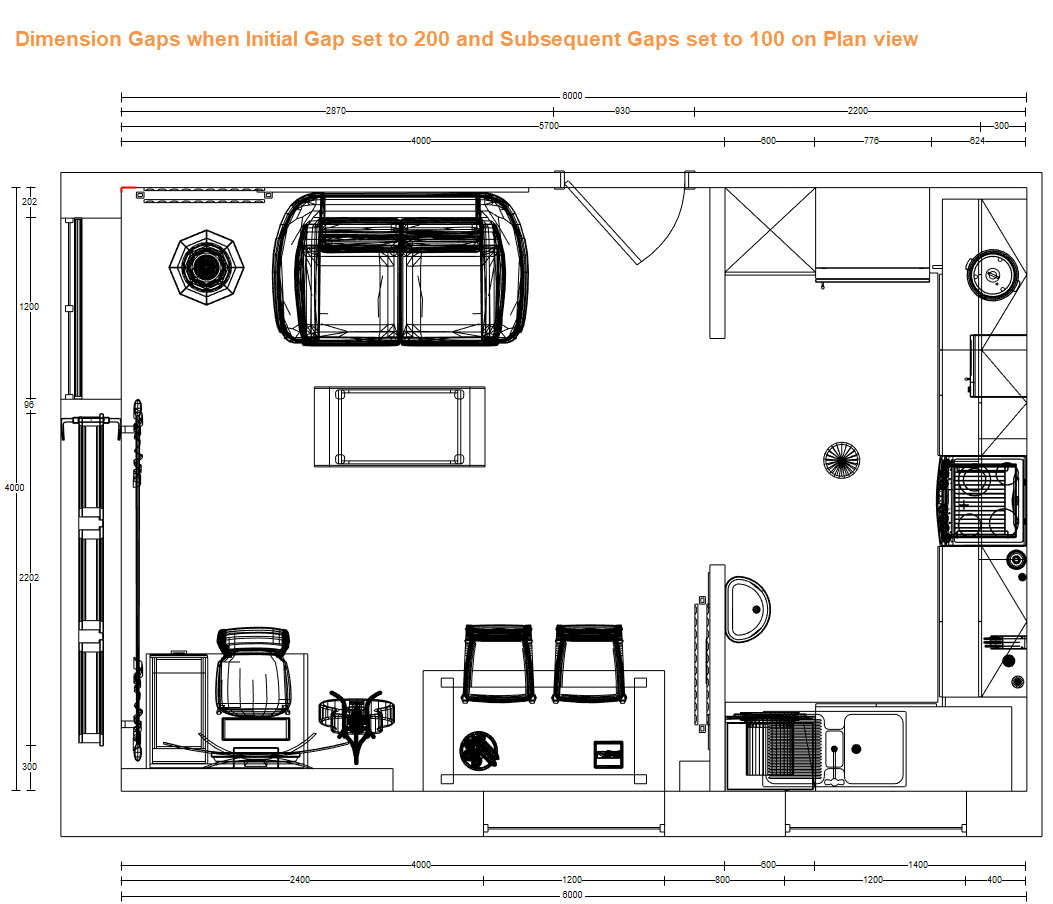

(With the settings below, the gap between the first dimension line and the wall will be 200 mm and the gap between the dimensions will be 100 mm)
