How to change the default dimension rail end style. How to change the dimension rail end style on an existing design.
If you wish to change the default Dimension Rail End Style, follow to steps below:

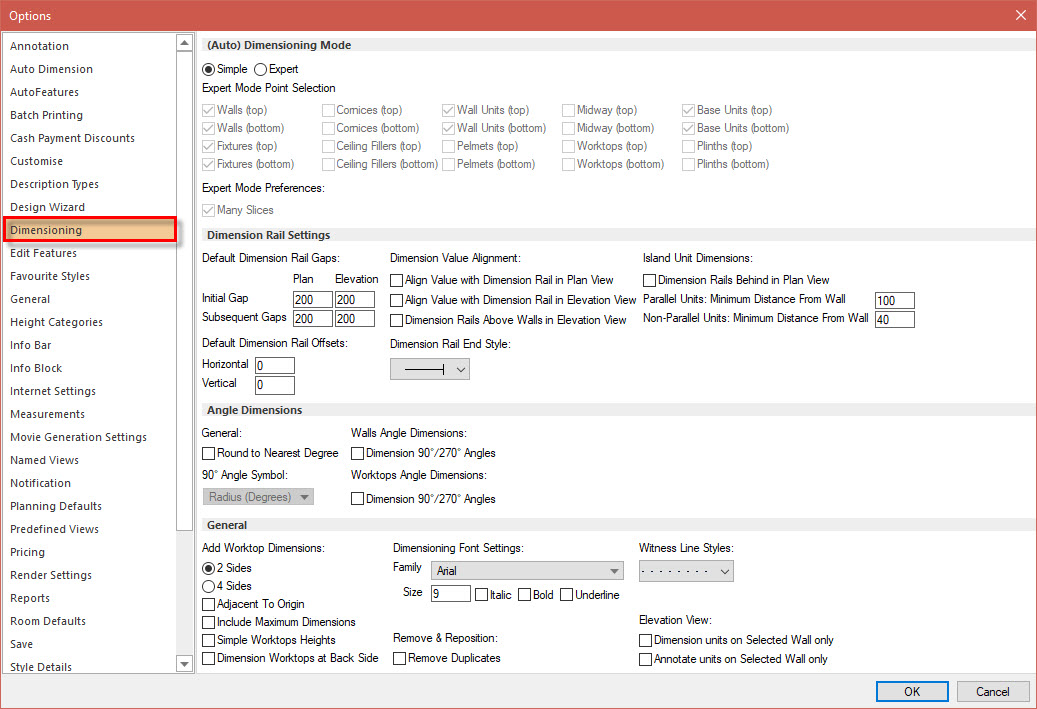

1. Go to File Options Dimensioning

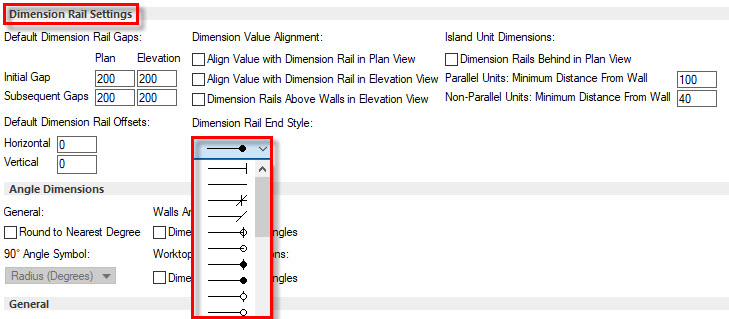

2. To change the Dimension Rail End Style, within the Dimension Rail Settings section, click on the Dimension Rail End Style drop down menu and
select the style you wish to set as default. Click OK to complete.
[Note: The changes will take effect on new designs you would create from this point forth and won't take effect on existing designs].
If you wish to change the Dimension Rail End Style on an existing design, follow to steps below:

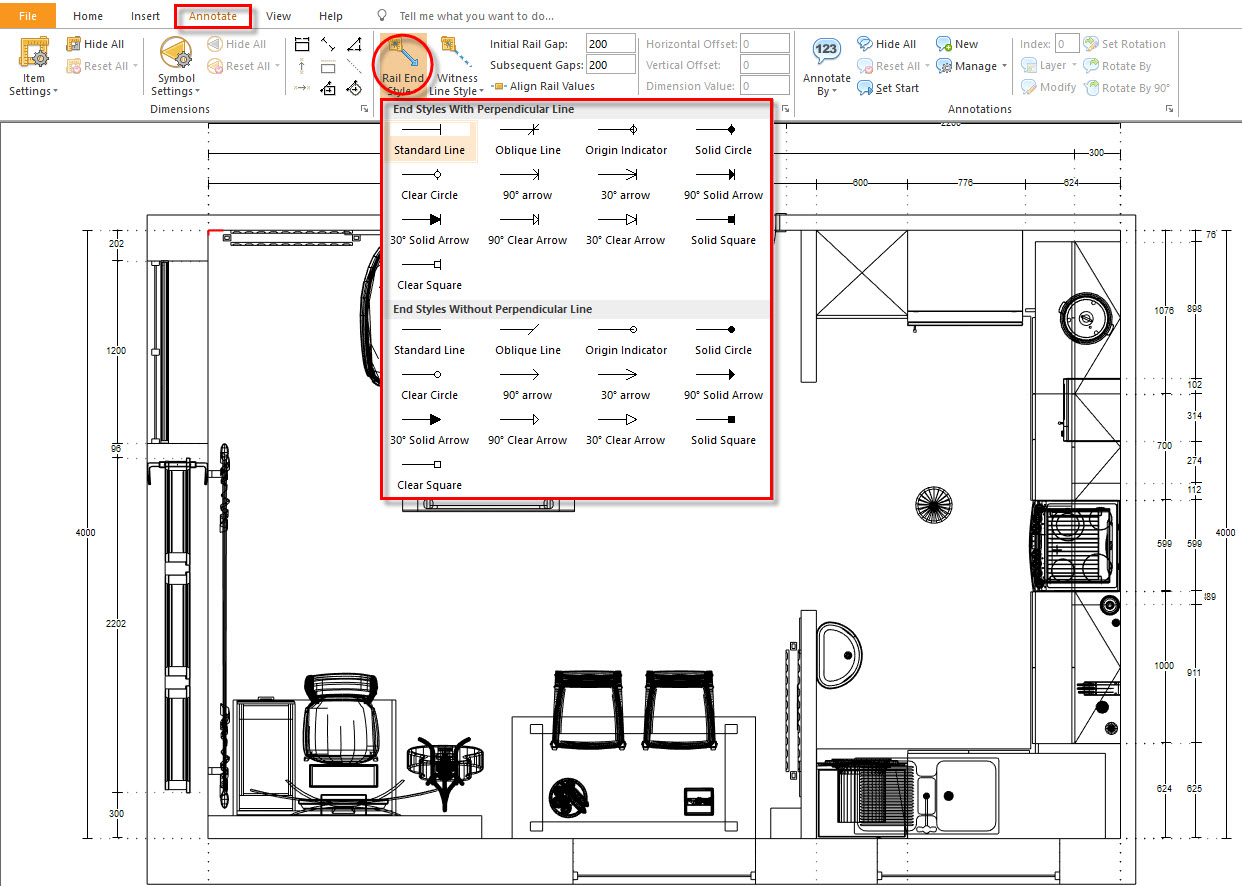

1. Open the design, go to the Annotate Rail End Style drop down menu and select the style you wish to use.

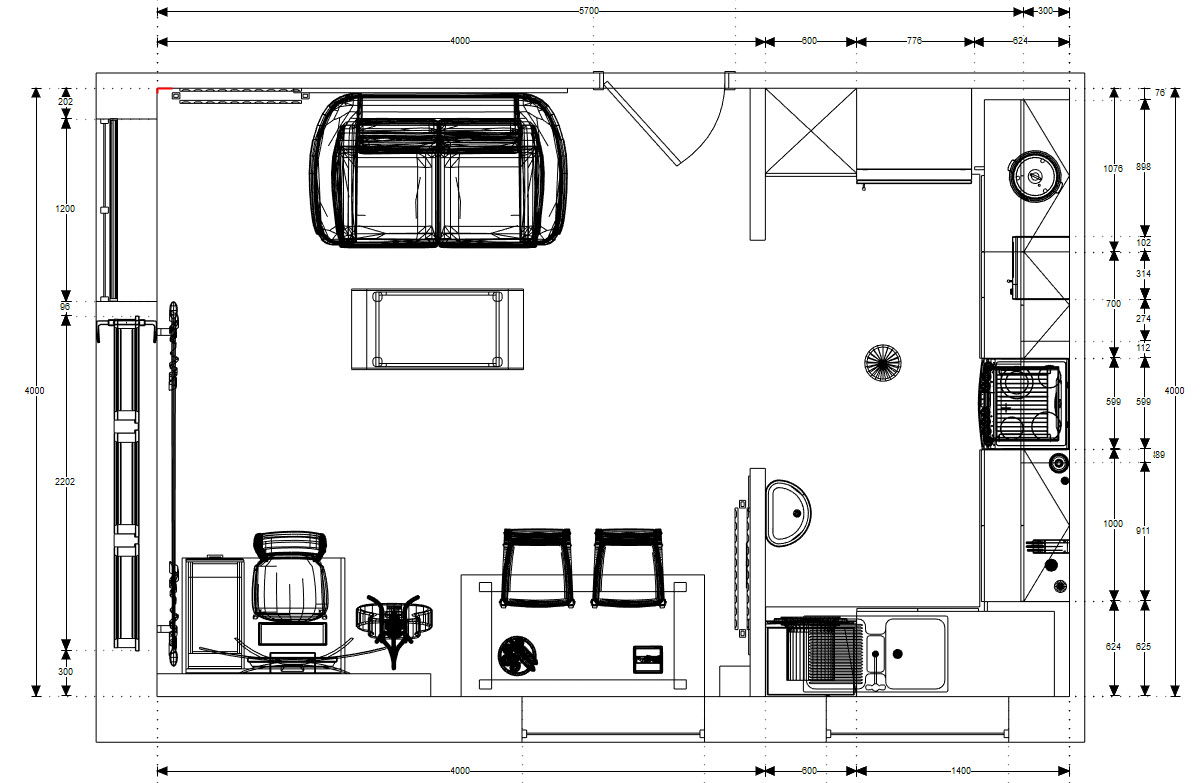

2. This will change the dimension rail end style as per your selection on the current design.
If you wish to change the Witness Line Style, please refer to the article on How to Change the Witness Line Style in 2020 Fusion
