To change the grain direction while in Auto Features, follow the steps below:

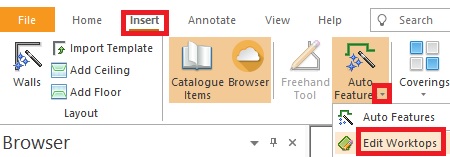

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running Auto Features and ticking the Edit Worktops box.
3. Insert or edit your worktops as detailed in How to Freehand Worktops Using Edit Worktops in 2020 Fusion or by using Auto Features.
4. Click Next and this will bring you to the "Jointing and Grain Direction" options.

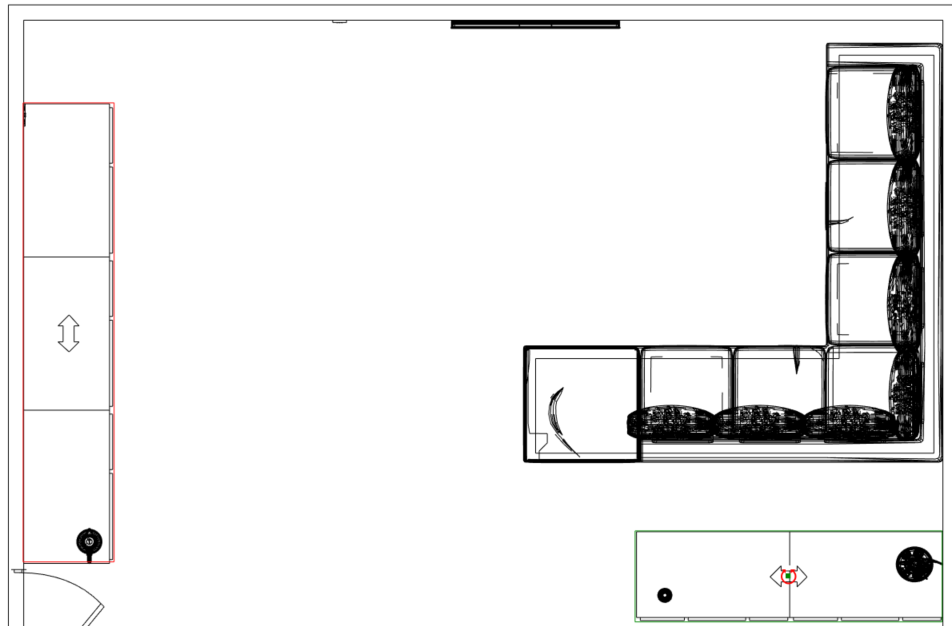

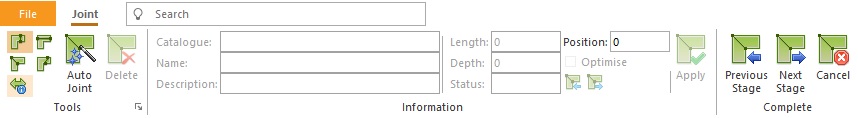

5. Select the Grain Direction tool as shown highlighted below. You will now see red isosceles triangles appear along the edge of your worktop.

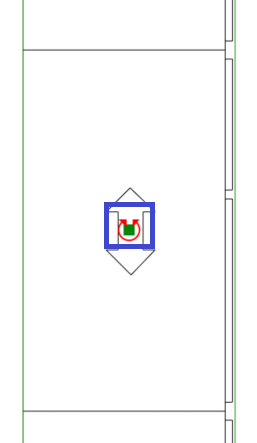

4. Select the grain direction arrow by left clicking on it.
5. You can tell once you have selected it properly as a symbol will appear in the arrow.

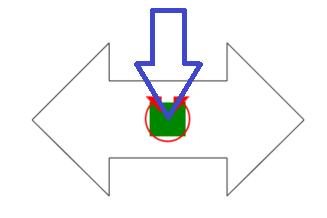

6. Click within the green square to change the direction.
7. Once you have selected the required Grain Direction of your worktop, click through the Next Stage buttons and click Finish.
