See the steps below for using the horizontal Joint to Item:

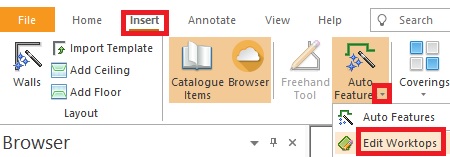

1. Go to Insert Auto Features.
2. Click on the drop down arrow and select Edit Worktops.
Note: This can also be accessed when running Auto Features and ticking the Edit Worktops box.
3. Insert or edit your worktops as detailed in How to Freehand Worktops Using Edit Worktops in 2020 Fusion or by using Auto Features.
4. Click Next and this will bring you to the "Jointing and Grain Direction" options.

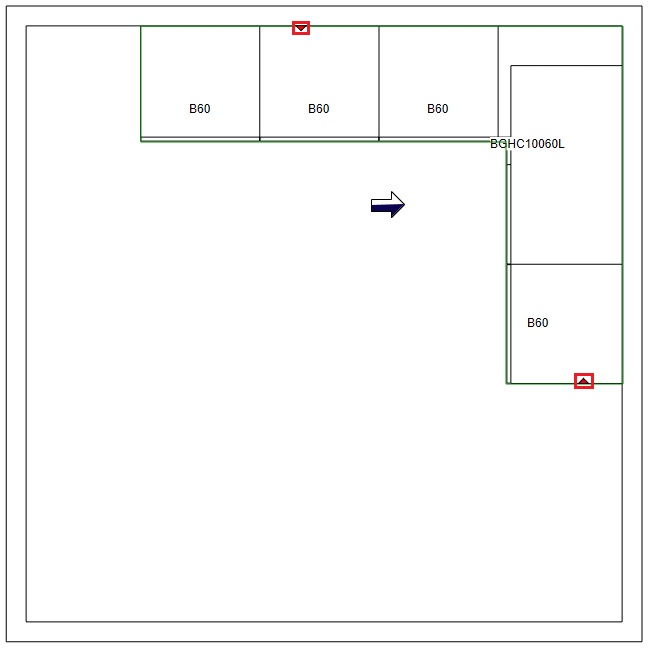

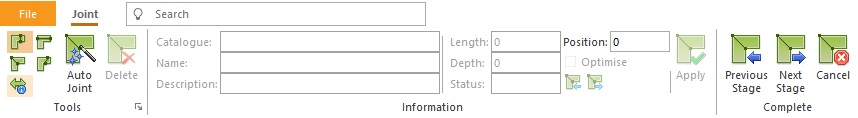

5. Select the Horizontal Joint tool as shown highlighted above. You will now see red isosceles triangles appear along the edge of your worktop.
6. Drag the triangle to the line where you would like to apply your manual joint and click Apply.
7. Once you have applied your joint(s) to your worktop, click through the Next Stage buttons and click Finish.
