Applying "Auto Joint Item" (Worktop Joint Tools) in 2020 Fusion

See the steps below for using the Vertical Joint to Item

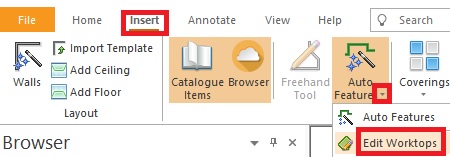

1. Go to Insert  Auto Features.

2. Click on the drop down arrow and select Edit Worktops.

Note: This can also be accessed when running Auto Features and ticking the Edit Worktops box.



3. Insert or edit your worktops as detailed in How to Freehand Worktops Using Edit Worktops in 2020 Fusion or by using Auto Features.

4. Click Next and this will bring you to the "Jointing and Grain Direction" options.

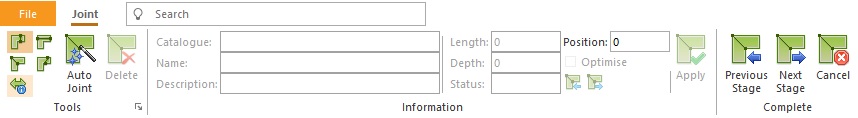

5. Select the Auto Joint tool from the Ribbon as shown above.

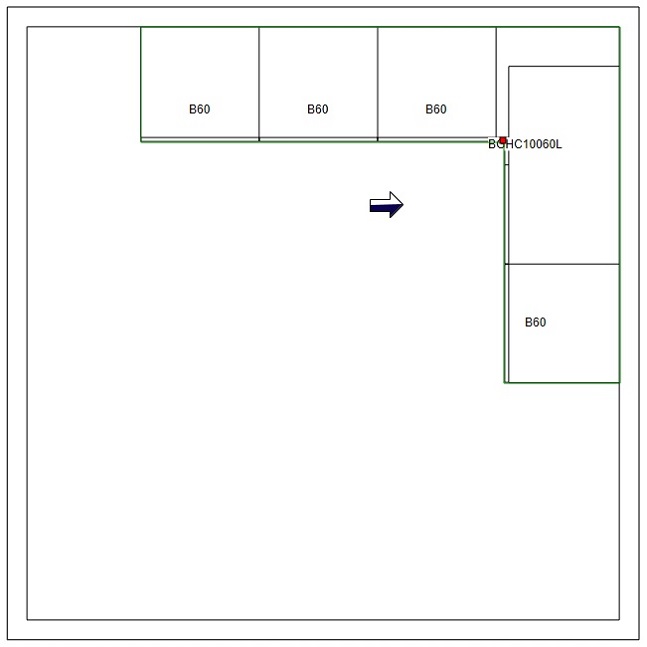

Before:

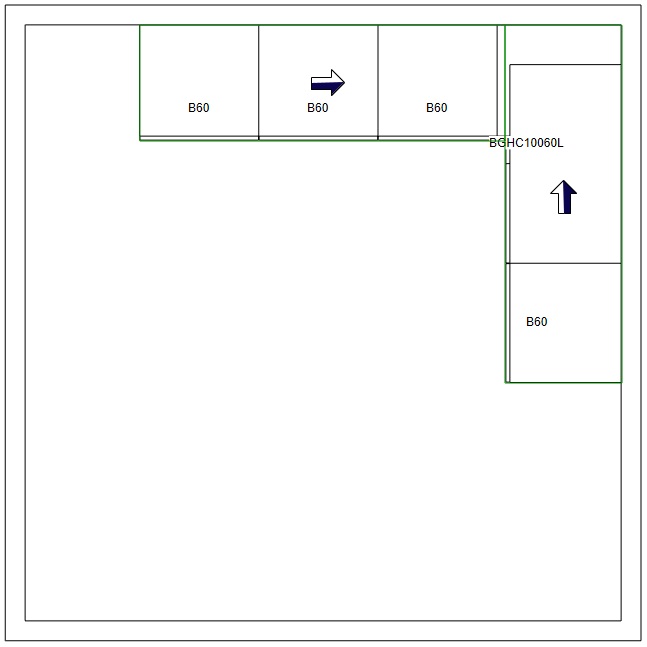

After:

7. Now you have Auto Jointed your worktop, click through the Next Stage buttons and click Finish.
