To set the hinge of a door, follow the steps below:

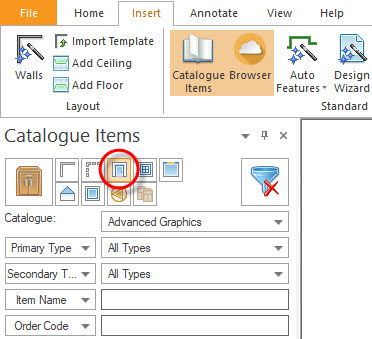

1. Within 2020 Fusion, go to the Catalogue Items palette and click on Door Selector.

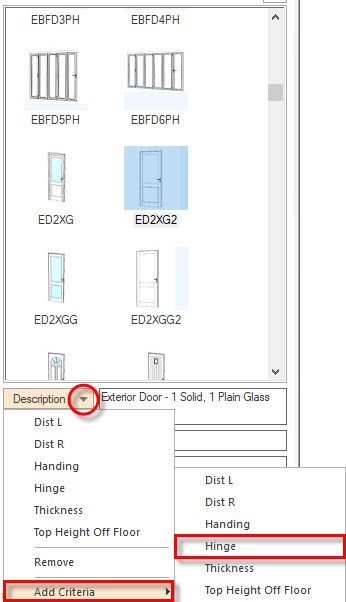

2. Click on one of the criteria to bring up the drop down menu the click on Add Criteria Hinge.

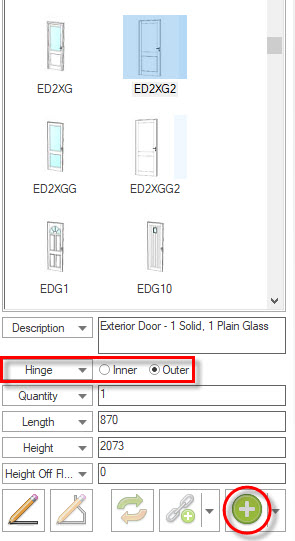

3. This will add hinge criteria to the door selector within the Catalogue Items Palette. Select Inner or Outer to set the hinge and click on Add to insert the door.

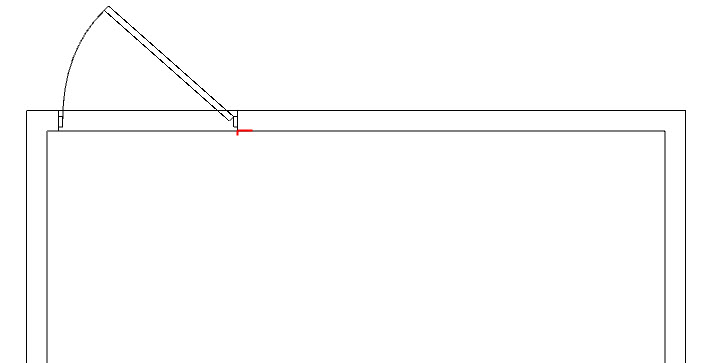

4. This will add the selected door as per the set hinge.
Note: If you choose to drag and drop the door into the plan to add it, you will see the window below where you can set the hinge or handing of the door.
If you wish to close doors in plan view, please refer to the article on How to Close Exterior Doors in Plan View in 2020 Fusion
If you wish to change door handing, please refer to the article on How to Change Door Handing in 2020 Fusion
