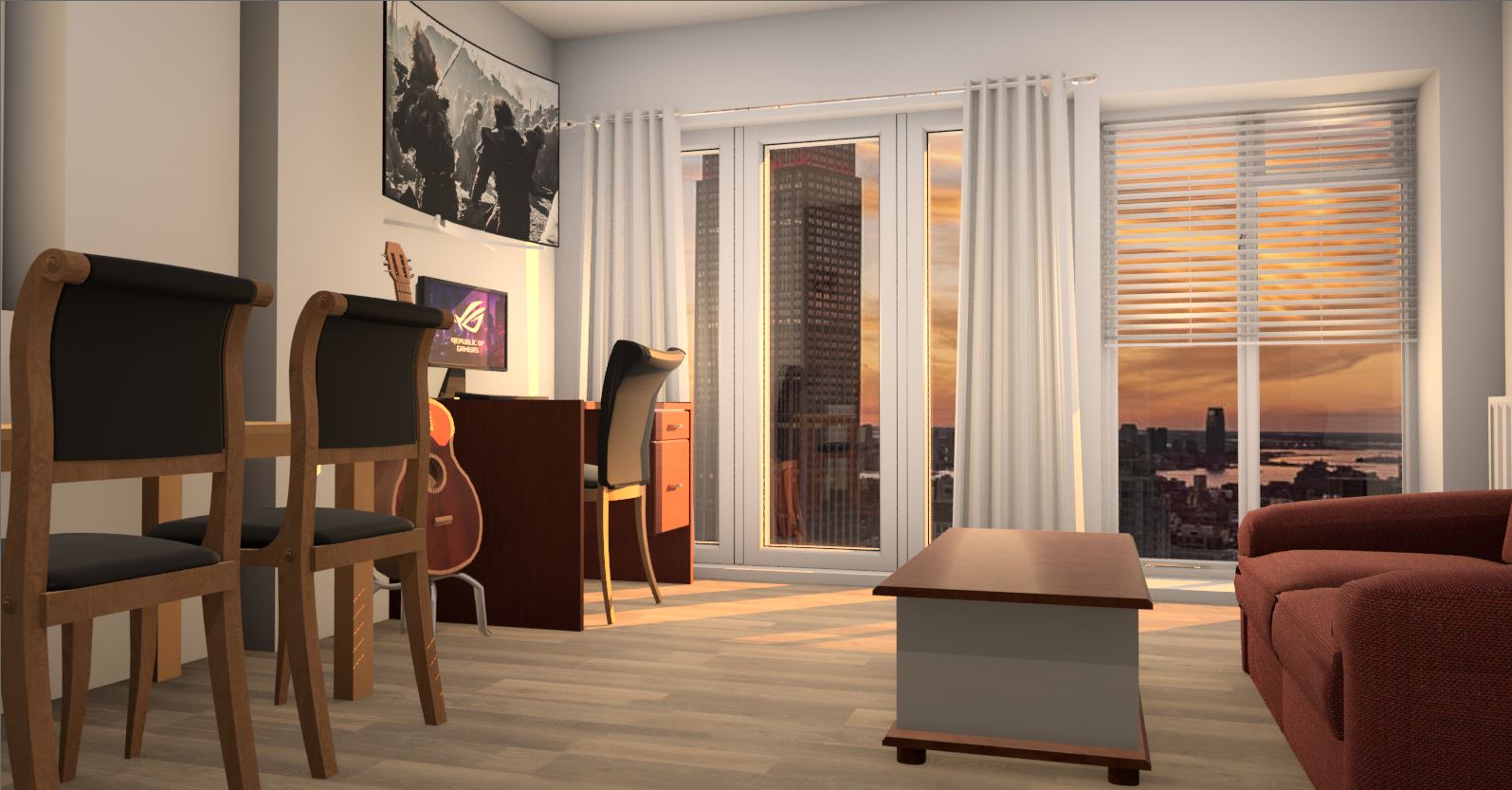

How can I give the added floor a shiny or glossy effect? How can I make a floor reflective?
Solution
To make your floor reflective or give the added floor a shiny / glossy finish in 2020 Fusion, follow the steps below:

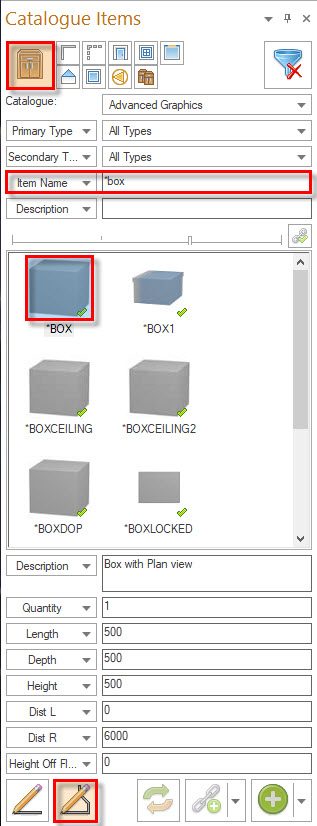

1. In the plan view, add a *BOX from the Advanced Graphics catalogue.
(You can use the Multi Line Tool to draw the *BOX over the floor).

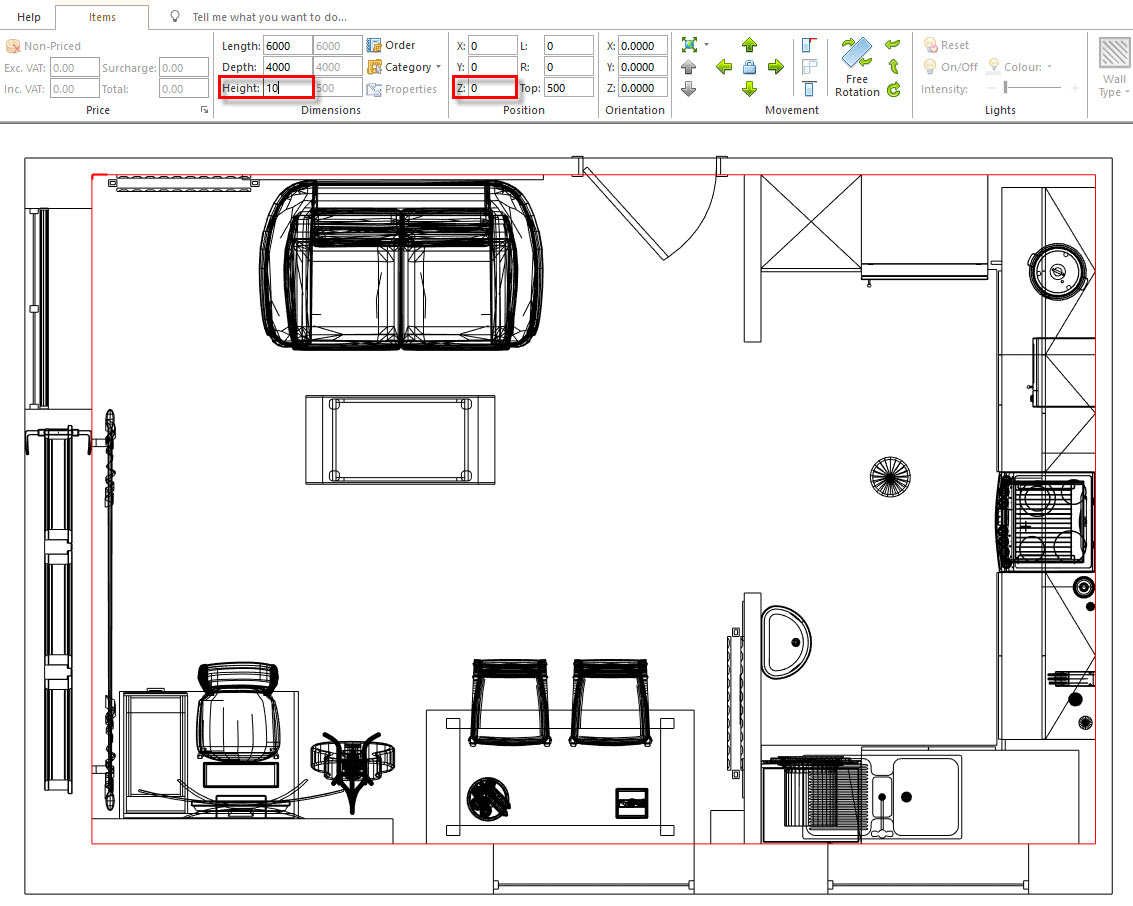

2. Once the *BOX has been drawn on to cover the floor, select the *BOX and change the height to 10 mm and ensure that the Z value on Position is set to 0.

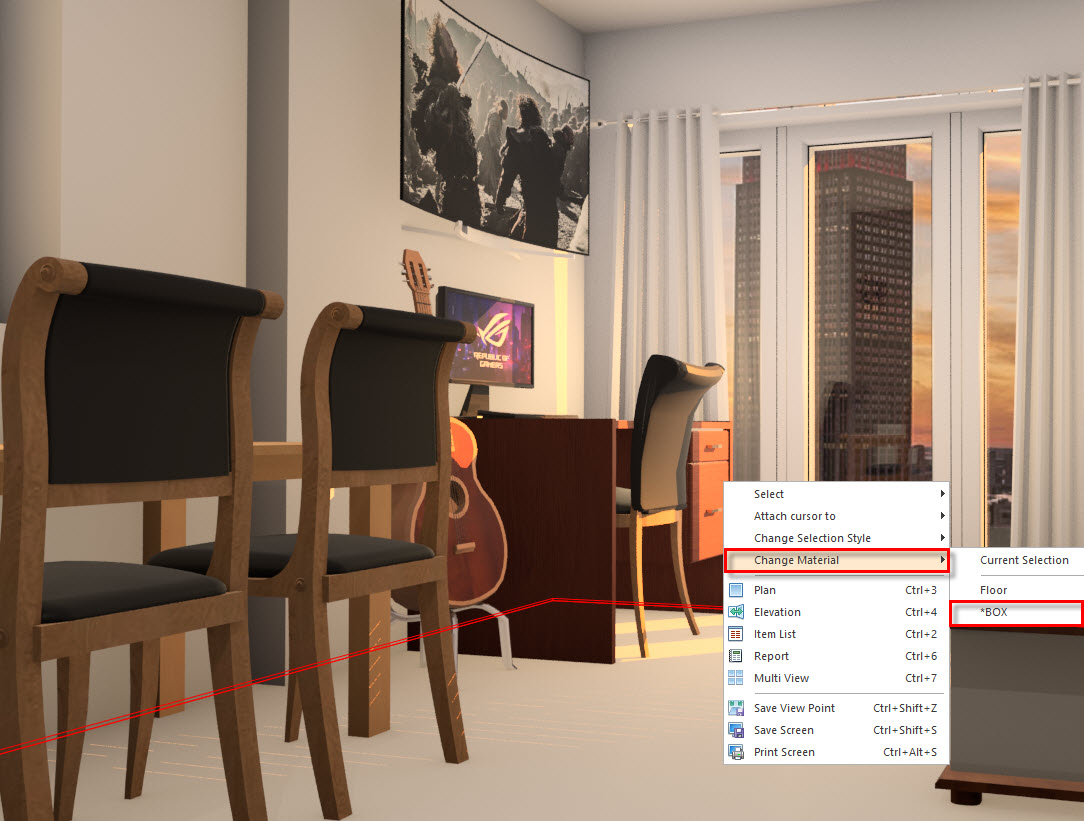

3. Right click on the added *BOX Change Material *BOX

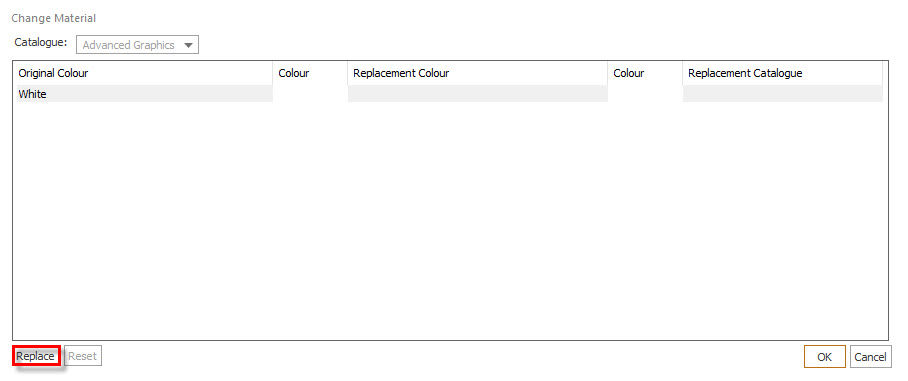

4. This will bring up the Change Material window. Click Replace.

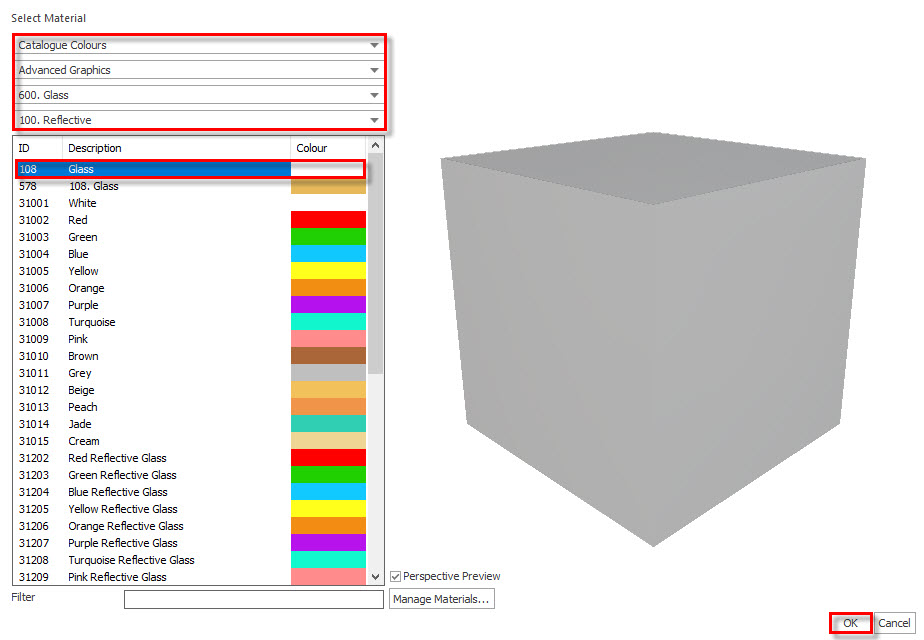

5. This will bring up the Select Material window. Select the categories in order as show below:
Catalogue Colours Advanced Graphics Glass Reflective and select Glass. Click OK.

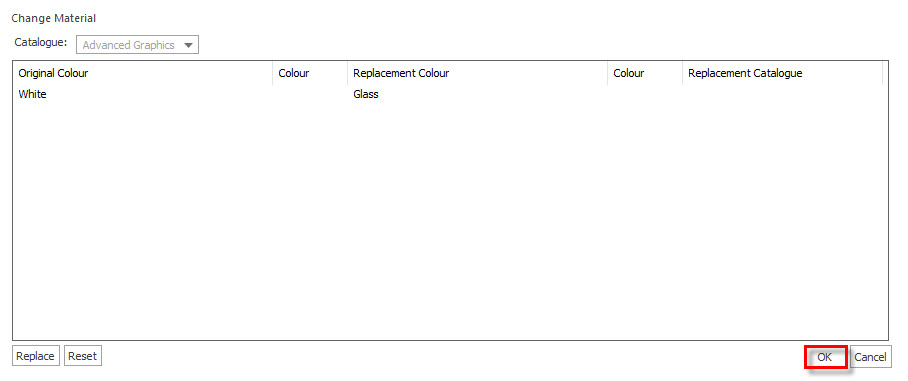

6. This will take you back to the Change Material window. Click OK to confirm.

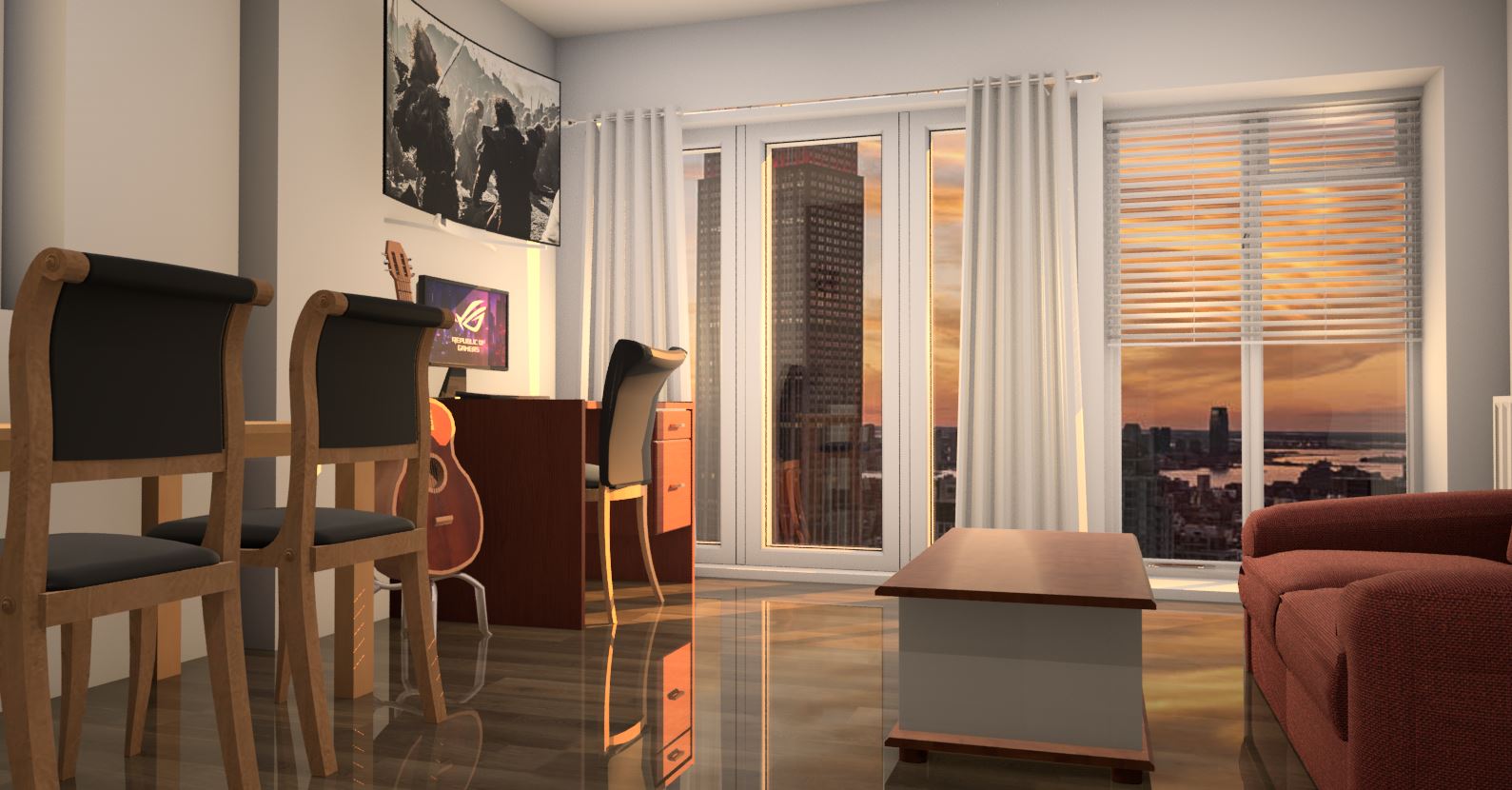

7. This will give the *BOX a reflective glass material, thereby giving the added floor placed under it a glossy or shiny effect.
You may also refer to the article on How to Change the Material of an Item in 2020 Fusion
