How do I change what information is stored in my unit list key?
Please follow these steps to configure what information is displayed in your unit list key:

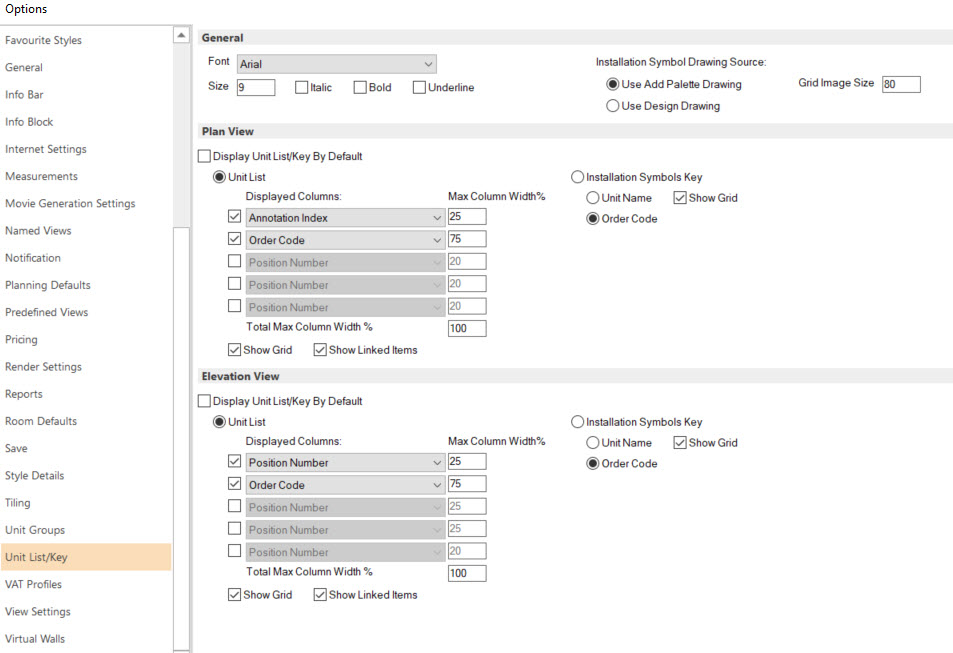

1. Within 2020 Fusion go to File Options Unit List/Key.
2. You will now see three sections:

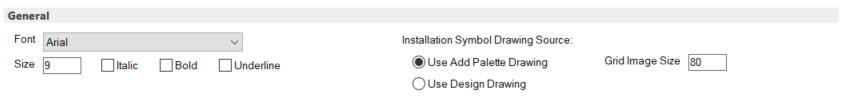

- General - You can define the font type and size that is displayed in the Unit List/Key. You can also set what the installation symbol drawing source is and set the image grid size.

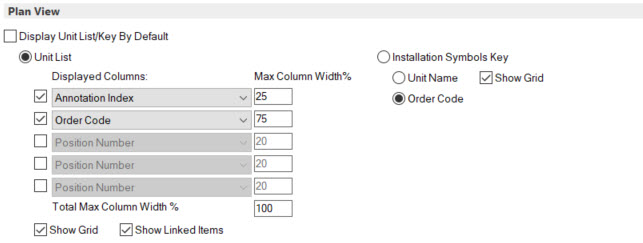

- Plan View - Here you can define your plan view default settings. You can define if you want a unit list or an installation symbols key. You can choose how many columns are present, the width of each column and what information you would like to display in the columns. You can also choose if you would like to display a grid and linked items.

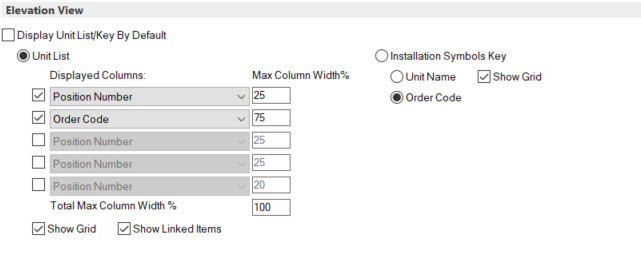

- Elevation View - Here you can define your elevation view default settings. You can define if you want a unit list or an installation symbols key. You can choose how many columns are present, the width of each column and what information you would like to display in the columns. You can also choose if you would like to display a grid and linked items.
Click here to see a article on how to enable your Unit List\Key
