Room design has dark patches and incorrect shadows on high renders.
When there is an item clashing with the ceiling or the floor, you may find that a design turns dark and has incorrect colour when applying high render.
To resolve this, please follow these steps.

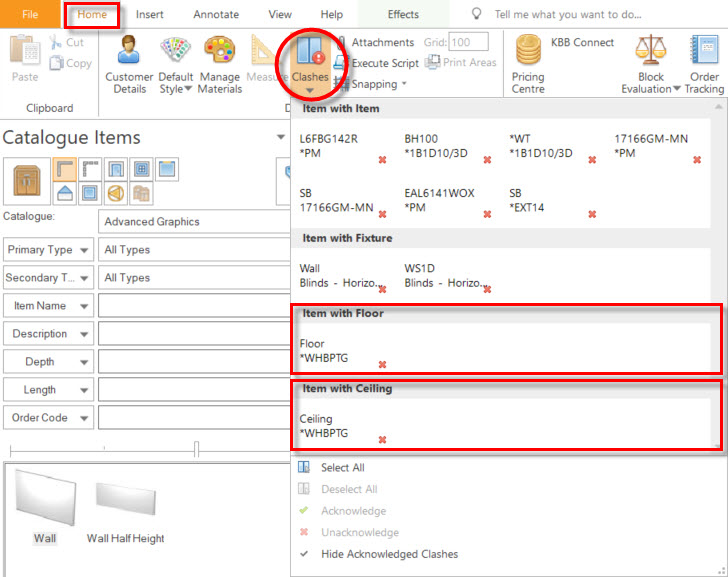

1. Go to Home Clashes and check if there are any items clashing with the floor or ceiling.

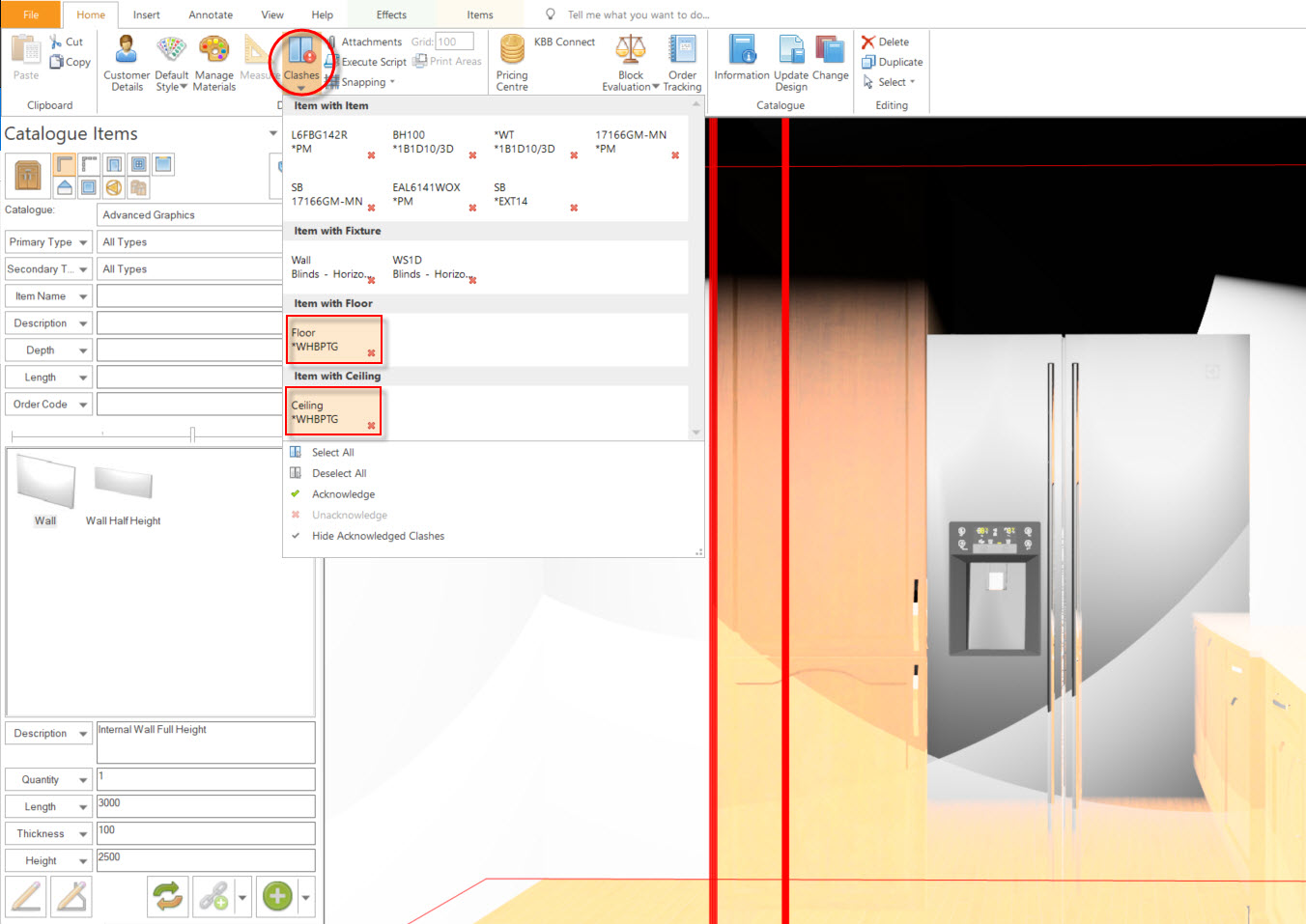

[In this example, we have an item clashing with both the floor and the ceiling]
2. Within clashes, select the clash that is conflicting with the floor or ceiling. (Press CTRL key to select multiple clashes).

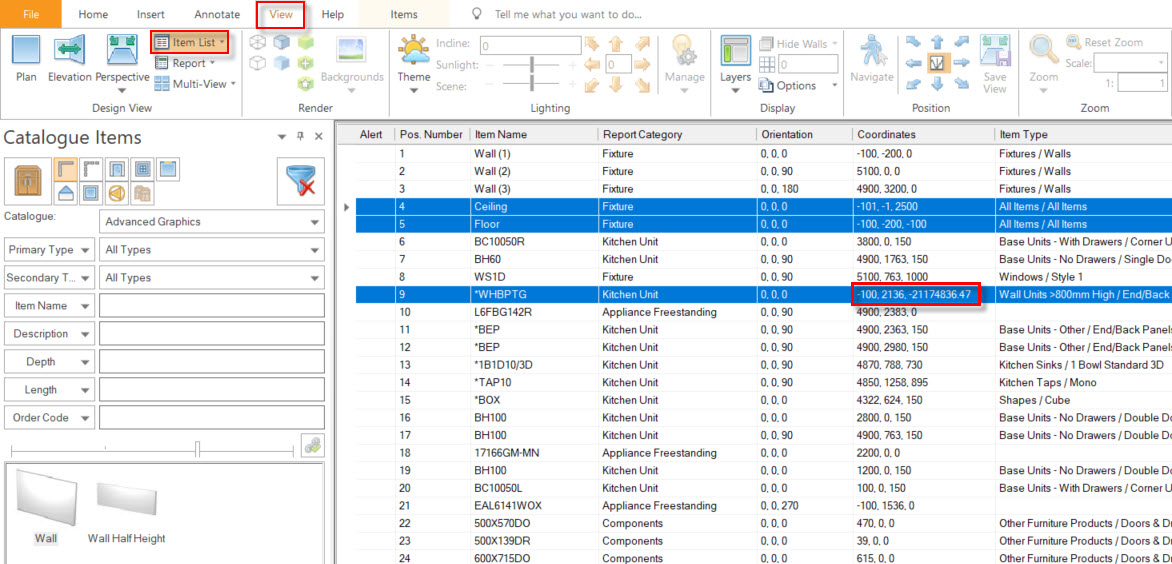

3. While the clashes are still selected, go to View and click on Items List. This will highlight the selected clashing items.

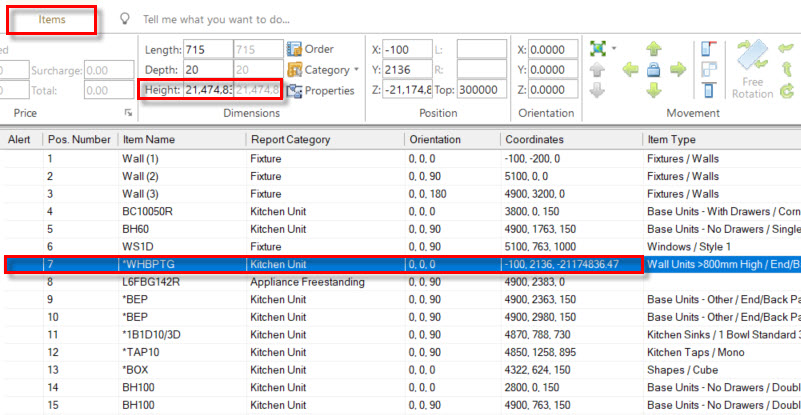

4. In this example, we see the dimension and position of item *WHBPTG is incorrect.

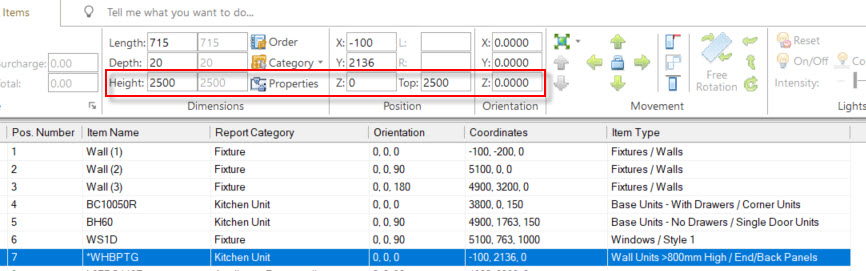

5. Select the clashing item and apply correct dimensions and position value by going to the Items tab.

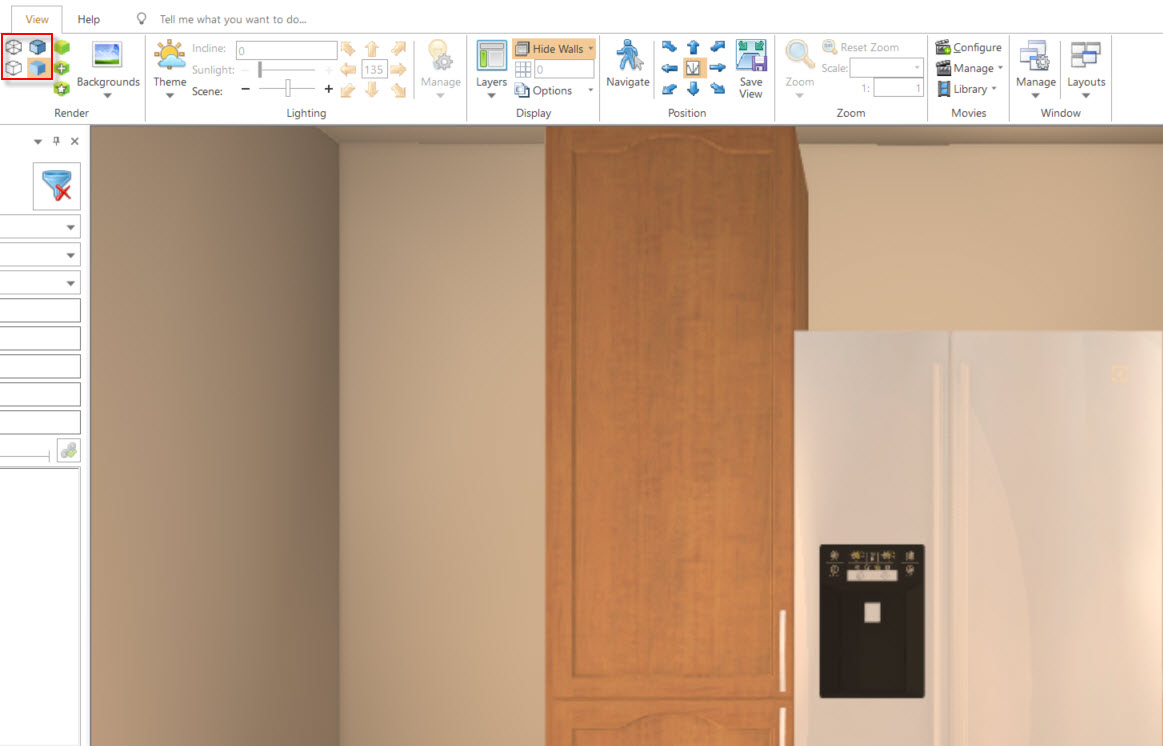

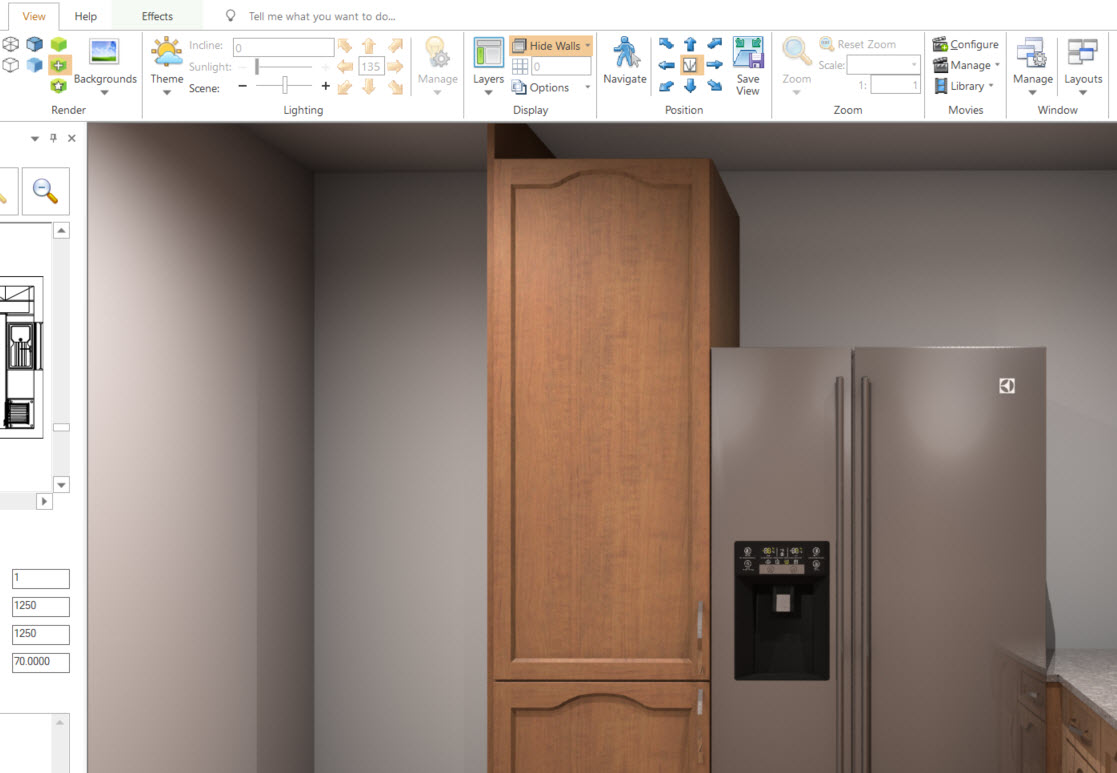

6. Once the dimension and position of the clashing unit has been corrected, you should be able to view the design correctly.
