How to remove line from an annotation? How to modify an annotation line? How to modify the angle and length of an annotation line?
If you wish to remove or delete an annotation line, follow the steps below;

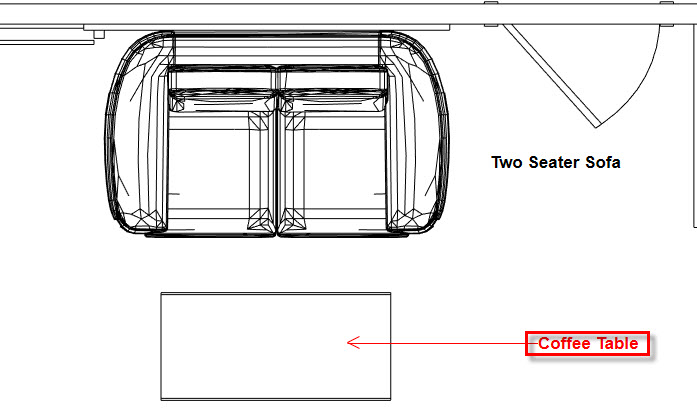

1. Select the annotation from which you wish to remove the line.

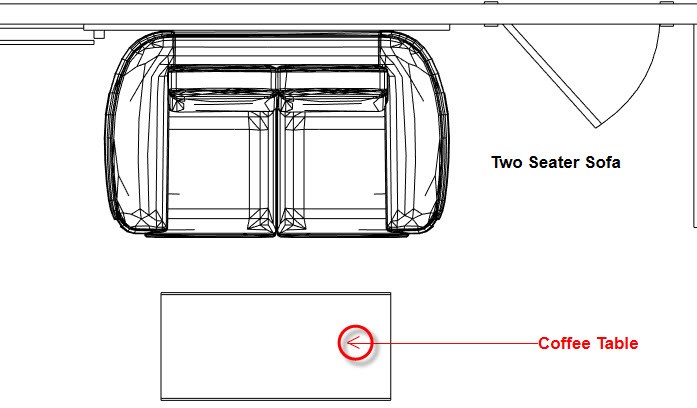

2. Press & Hold Shift Key on your keyboard and Click on the end of the annotation line.

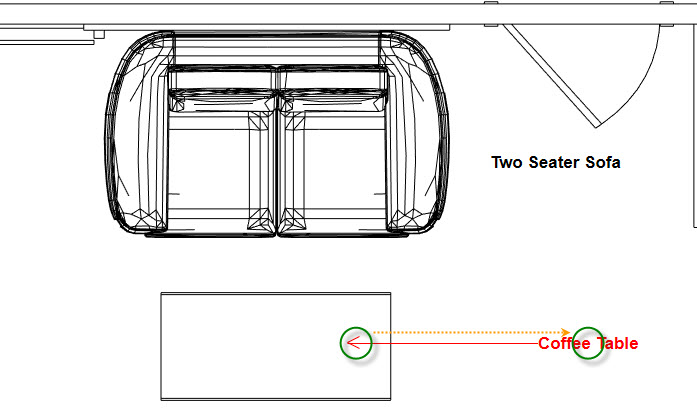

3. While still pressing the shift key, click and drag the line into the annotation.

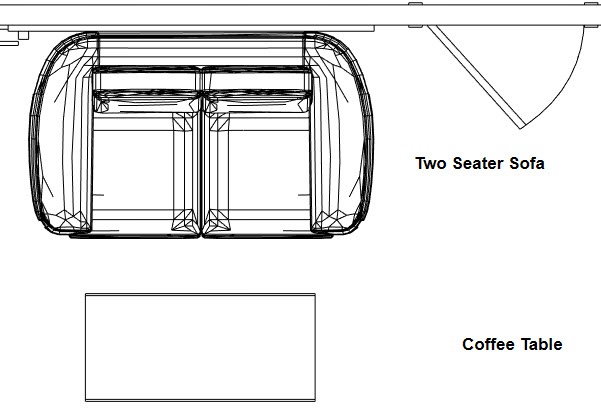

4. This will remove / delete the annotation line.
If you wish to modify an annotation line, follow the steps below;

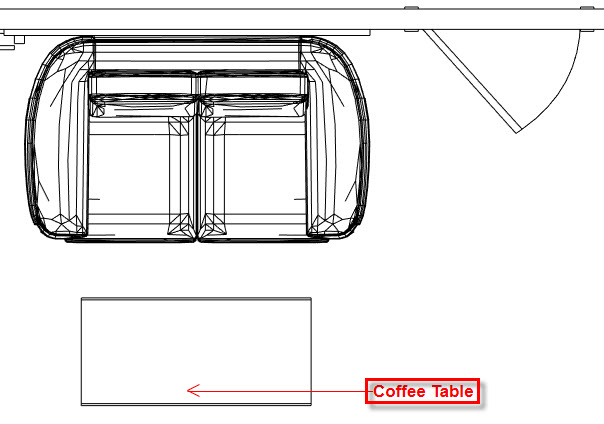

1. Select the annotation you wish to modify the line.
2. Press & Hold Shift Key on your keyboard and Click on the end of the annotation line.

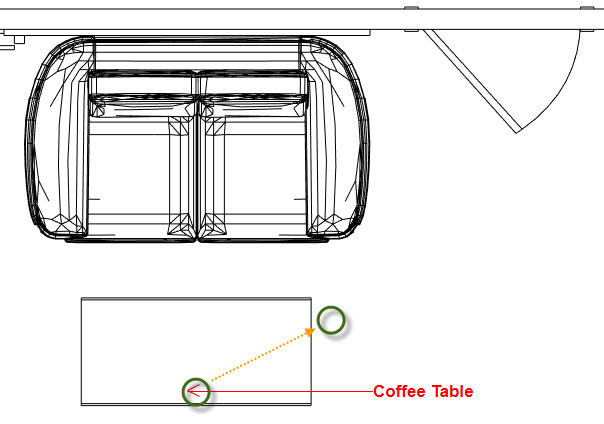

3. While still pressing the shift key, click and drag the line at the length and angle you want.
4. This will change angle and length of an annotation line accordingly.
